9685 060U1000

Active

Belden Inc.

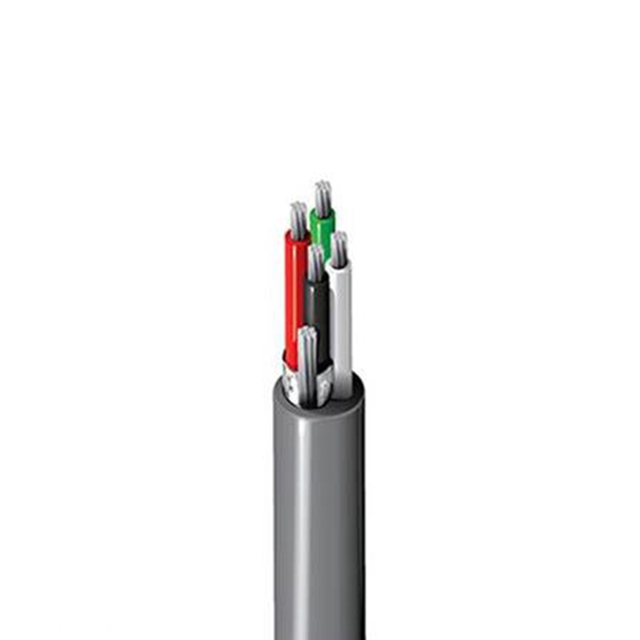

CABLE 3COND 22AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 22AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9685 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Shield Coverage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length	Length	Shield Type	Ratings	Usage	Conductor Insulation	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Voltage	Shield Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 9685 060U1000	Copper Tinned	100 %	Drain Wire	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Foil	UL Style 2919	Computer	Poly-Vinyl Chloride (PVC)	Chrome	3	7	30 AWG	22 AWG	300 V	Aluminum	Multi-Conductor	5.06 mm	0.199 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.64

General part information

3 Conductor Multi-Conductor Cable Chrome 22 AWG Foil 1000.0' (304.8m)
