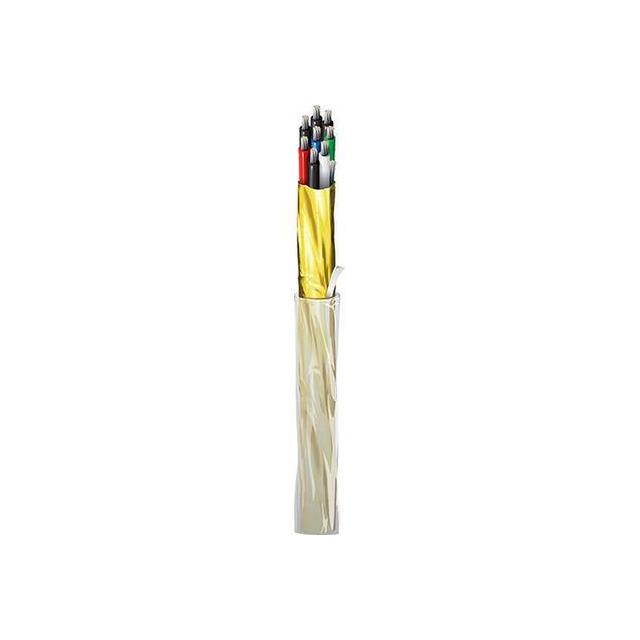

85164 3681000

Active

Belden Inc.

MULTI-PAIR 8CON 20AWG CLR

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 20AWG CLR

Technical Specifications

Parameters and characteristics for this part

Specification	85164 3681000

Cable Type	Multi-Pair
Conductor Insulation	Ethylene Tetrafluoroethylene (ETFE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.74 mm
Jacket (Insulation) Diameter [diameter]	0.344 "
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Clear
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

Part	Jacket (Insulation) Material	Wire Gauge	Features	Conductor Material	Conductor Insulation	Number of Conductors	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Length	Length	Shield Material	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 85164 3681000	Ethylene Tetrafluoroethylene (ETFE)	20 AWG	Drain Wire	Copper Tinned	Ethylene Tetrafluoroethylene (ETFE)	8	Audio Control Instrumentation	8.74 mm	0.344 "	Multi-Pair	100 %	28	7	Foil	1000 ft	304.8 m	Aluminum	Clear	150 °C	-60 °C	0.025 in	0.635 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 34.90

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Clear 20 AWG Foil 1000.0' (304.8m)
