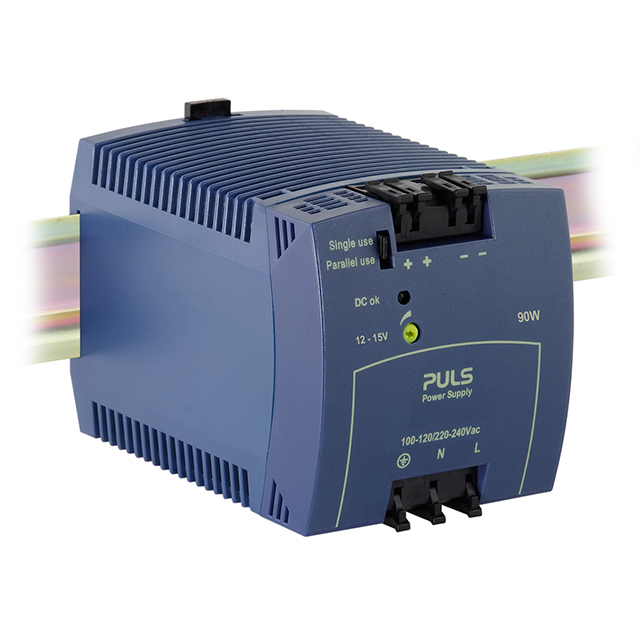

ML100.102

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 12V 90W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 12V 90W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ML100.102	ML100 Series

AC Voltage - Input [Max]	132 VAC, 264 VAC	120 - 480 VAC
AC Voltage - Input [Min]	85 VAC, 184 VAC	85 - 380 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CSA, EAC, ABS, DNV GL, IEC, UL	UL, IEC, ABS, EAC, DNV GL, CSA
Current - Output (Max) [Max]	7.5 A	2.1 - 7.5 A
Efficiency	88.5 %	88.5 - 91.5 %
Features	Adjustable Output, Load Sharing	Adjustable Output, Load Sharing, Conformal Coating
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	-10 - 0 °C
Power (Watts)	90 W	90 - 100 W
Size / Dimension [x]	4.06 "	4.06 "
Size / Dimension [x]	103 mm	103 mm
Size / Dimension [y]	2.87 "	2.87 "
Size / Dimension [y]	73 mm	73 mm
Size / Dimension [z]	75 mm	75 mm
Size / Dimension [z]	2.95 "	2.95 "
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2	61010-2-201, 60950-1, 508, Class I Div 2
Voltage - Output 1	12 V	12 - 48 V

AC/DC DIN RAIL SUPPLY 24V 100W

Part	Features	Number of Outputs	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Voltage - Output 1	Current - Output (Max) [Max]	Standard Number	Efficiency	Power (Watts)	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]
PULS, LP ML100.200	Adjustable Output, Load Sharing	1	AC	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	ABS, DNV GL, EAC, IEC, UL	24 V	4.2 A	508, 60950-1, 61010-2-201	90 %	100 W	ITE (Commercial)	380 VAC	480 VAC
PULS, LP ML100.109	Adjustable Output, Conformal Coating, Load Sharing	1	AC	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	CSA, EAC, IEC, UL	24 V	4.2 A	508, 60950-1, 61010-2-201, Class I Div 2	90 %	100 W	ITE (Commercial)	100 VAC, 200 VAC	120 VAC, 240 VAC	-10 °C	70 °C
PULS, LP ML100.105	Adjustable Output, Load Sharing	1	AC	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	ABS, DNV GL, EAC, IEC, UL	48 V	2.1 A	508, 60950-1, 61010-2-201	91.5 %	100 W	ITE (Commercial)	85 VAC, 184 VAC	132 VAC, 264 VAC	0 °C	70 °C
PULS, LP ML100.102	Adjustable Output, Load Sharing	1	AC	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	ABS, CSA, DNV GL, EAC, IEC, UL	12 V	7.5 A	508, 60950-1, 61010-2-201, Class I Div 2	88.5 %	90 W	ITE (Commercial)	85 VAC, 184 VAC	132 VAC, 264 VAC	0 °C	70 °C
PULS, LP ML100.100	Adjustable Output, Load Sharing	1	AC	75 mm	2.87 "	73 mm	4.06 "	2.95 "	103 mm	ABS, CSA, DNV GL, EAC, IEC, UL	24 V	4.2 A	508, 60950-1, 61010-2-201, Class I Div 2	90 %	100 W	ITE (Commercial)	85 VAC, 184 VAC	132 VAC, 264 VAC	0 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 282.60

General part information

AC/DC DIN RAIL SUPPLY 12V 90W
