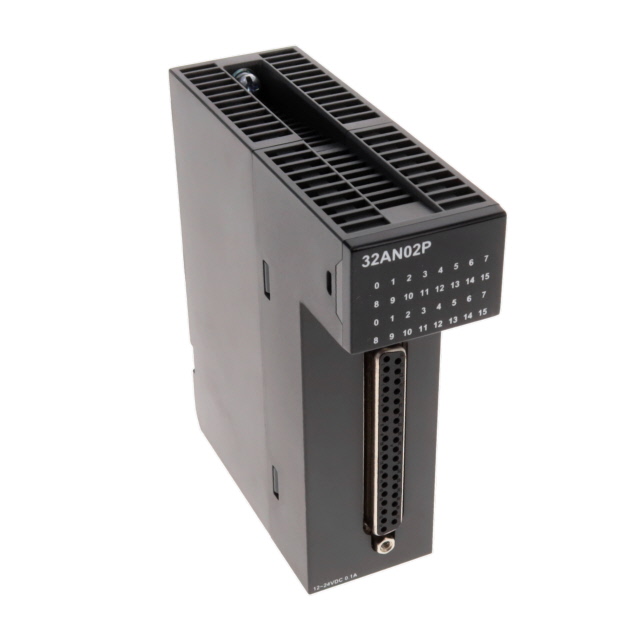

AH32AN02P-5B

Delta Electronics/Industrial Automation

OUTPUT MODULE 32 SOL ST 12-24V

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

OUTPUT MODULE 32 SOL ST 12-24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AH32AN02P-5B	AH32AN Series

For Use With/Related Products	AH Series	AH Series
Mounting Type	Backplane	Backplane
Number of Outputs and Type [custom]	32	32
Number of Outputs and Type [custom]	Solid State	Solid State
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Termination Style	D-Sub	D-Sub, Rectangular Connector, Pluggable Screw Terminal
Type	Output Module	Output Module
Voltage - Supply [Max]	24 V	24 V
Voltage - Supply [Min]	12 V	12 V

OUTPUT MODULE 32 SOL ST 12-24V

Part	Mounting Type	For Use With/Related Products	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Type
Delta Electronics/Industrial Automation AH32AN02P-5B	Backplane	AH Series	D-Sub	24 V	12 V	-20 C	60 °C	32	Solid State	Output Module
Delta Electronics/Industrial Automation AH32AN02T-5C	Backplane	AH Series	Rectangular Connector	24 V	12 V	-20 C	60 °C	32	Solid State	Output Module
Delta Electronics/Industrial Automation AH32AN02T-5A	Backplane	AH Series	Pluggable Screw Terminal	24 V	12 V	-20 C	60 °C	32	Solid State	Output Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Output Module Backplane 12 ~ 24VDC
