1322C SL001

Active

ALPHA WIRE

MULTI-PAIR 12COND 22AWG 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 12COND 22AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1322C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	8.13 mm
Jacket (Insulation) Diameter [diameter]	0.32 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 12COND 22AWG 1000'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Voltage	Jacket (Insulation) Material	Cable Type	Wire Gauge	Usage	Conductor Insulation	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors
ALPHA WIRE 1322C SL001	7	30 AWG	Slate	8.13 mm	0.32 in	0.889 mm	0.035 in	1000 ft	304.8 m	300 V	Poly-Vinyl Chloride (PVC)	Multi-Pair	22 AWG	Communication, Control	Poly-Vinyl Chloride (PVC)	Copper, Tinned	-20 C	80 C	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2179.41

General part information

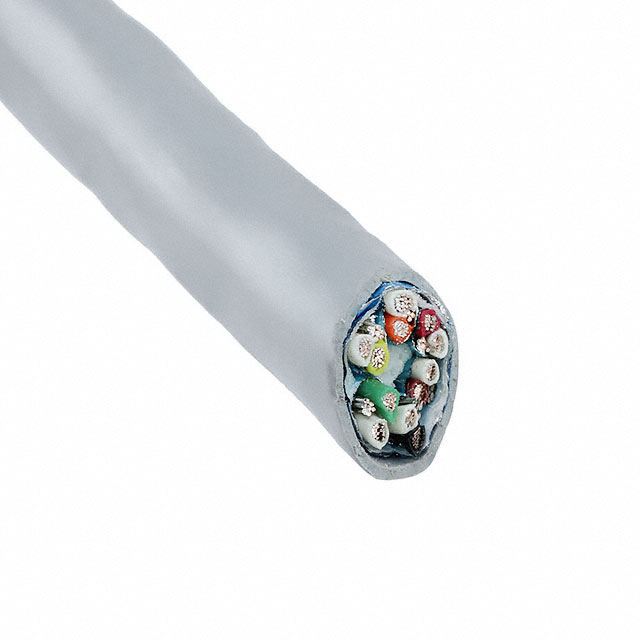

12 (6 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 1000.0' (304.8m)
