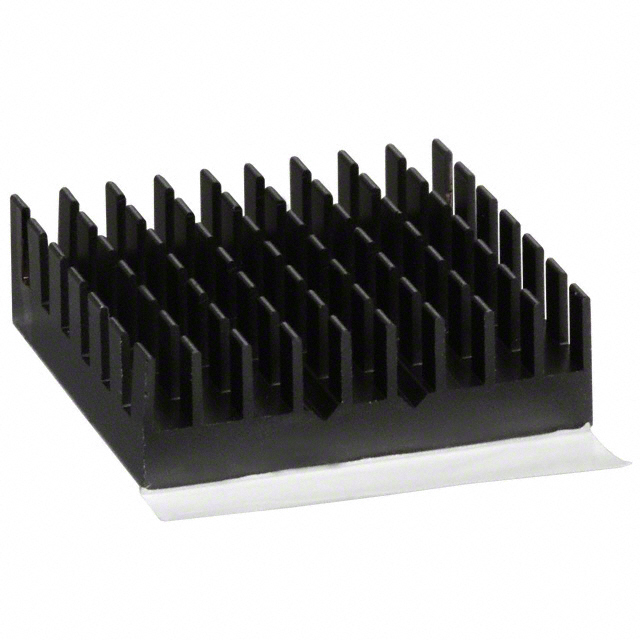

Specification	ATS-55310D-C1-R0

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	0.374 in
Length	1.22 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance	13.5 °C/W
Type	Top Mount
Width	1.22 in

BGA Cross-Cut Series

...

Part	Thermal Resistance	Shape	Material Finish	Material	Type	Fin Height	Package Cooled	Width	Length	Attachment Method
Advanced Thermal Solutions Inc. ATS-51310K-C1-R0	4.2 °C/W	Angled Fins Square	Black Anodized	Aluminum	Top Mount	0.571 in	BGA	1.22 in	1.22 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-51325K-C1-R0	3.5 °C/W	Angled Fins Square	Black Anodized	Aluminum	Top Mount	0.571 in	BGA	1.28 in	1.28 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-51425D-C1-R0	4.3 °C/W	Angled Fins Square	Black Anodized	Aluminum	Top Mount	0.374 in	BGA	1.673 in	1.673 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-50300P-C1-R0	3.4 °C/W	Angled Fins Square	Blue Anodized	Aluminum	Top Mount	0.689 in	BGA	1.181 in	1.181 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-50425P-C1-R0	1.9 °C/W	Angled Fins Square	Blue Anodized	Aluminum	Top Mount	0.689 in	BGA	1.673 in	1.673 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-50425B-C1-R0	4.3 °C/W	Angled Fins Square	Blue Anodized	Aluminum	Top Mount	0.295 in	BGA	1.673 in	1.673 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-51300R-C1-R0	3.3 °C/W	Angled Fins Square	Black Anodized	Aluminum	Top Mount	0.768 in	BGA	1.181 in	1.181 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-50375P-C1-R0	2.1 °C/W	Angled Fins Square	Blue Anodized	Aluminum	Top Mount	0.689 in	BGA	1.476 in	1.476 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-50450B-C1-R0	4 °C/W	Angled Fins Square	Blue Anodized	Aluminum	Top Mount	0.295 in	BGA	1.772 in	1.772 in	Clip Thermal Material
Advanced Thermal Solutions Inc. ATS-50350P-C1-R0	2.3 °C/W	Angled Fins Square	Blue Anodized	Aluminum	Top Mount	0.689 in	BGA	1.378 in	1.378 in	Clip Thermal Material
