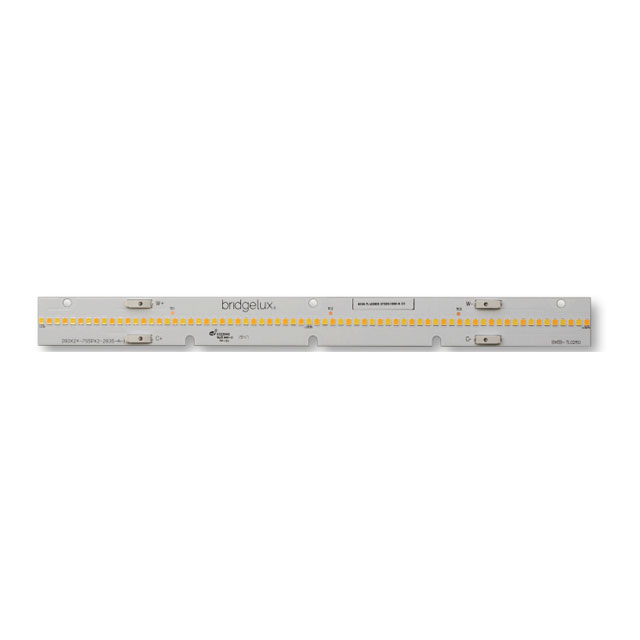

BXEB-TL-L0280Z-2750S1000-B-C3

Active

BRIDGELUX

LED MOD VESTA WHT LNR STRP 3850K

Search across all available documentation for this part.

Active

BRIDGELUX

LED MOD VESTA WHT LNR STRP 3850K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXEB-TL-L0280Z-2750S1000-B-C3	BXEB-TL-L0280 Series

CCT (K)	3850 K	2700 - 5000 K
Color	White, Cool, White, Warm	White, Cool, White, Warm
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	98	80 - 98
Current - Max [Max]	750 mA	750 mA
Current - Test	2, 300 mA	2 - 375 mA
Height [z]	5.6 mm	5.6 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	138 lm/W, 122 lm/W	122 - 138 lm/W
Luminous Flux @ Current/Temperature	740 lm, 840 lm	740 - 1362 lm
Size / Dimension [x]	280 mm	280 mm
Size / Dimension [y]	24 mm	24 mm
Type	LED Module	LED Module
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	20.3 V	19.7 - 20.3 V

VESTA TL GEN 3 (1 SMD ROW) LED MODULE, 280 MM, 2700-5000K, 80 CRI

Part	Luminous Flux @ Current/Temperature	Configuration	Lens Type	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Current - Test	Color	CRI (Color Rendering Index)	Current - Max [Max]	CCT (K)	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test
BRIDGELUX BXEB-TL-L0280Z-2750E1000-B-C3	1219 lm, 1362 lm	Linear Light Strip	Flat	5.6 mm	280 mm	24 mm	LED Module	375 mA	White, Cool, White, Warm	80	750 mA	2700 K, 5000 K	120 °	19.7 V
BRIDGELUX BXEB-TL-L0280Z-2750S1000-B-C3	740 lm, 840 lm	Linear Light Strip	Flat	5.6 mm	280 mm	24 mm	LED Module	2, 300 mA	White, Cool, White, Warm	98	750 mA	3850 K		20.3 V	122 lm/W, 138 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module Vesta™ Tunable Linear Gen 3 White, Warm / White, Cool Linear Light Strip
