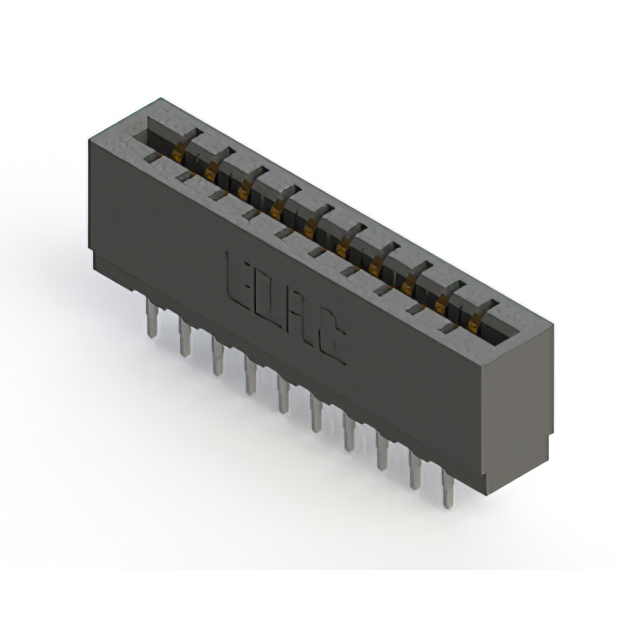

717-020-525-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

717-020-525-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	717-020-525-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

717-020 Series

Part	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pitch [x]	Pitch [x]	Termination	Contact Finish	Contact Material	Mounting Type	Termination Rows	Material - Insulation	Number of Positions	Color	Number of Positions/Bay/Row [custom]
EDAC Inc. 717-020-541-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	20	20	20	Single	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit Wire Wrap	Gold	Copper Alloy	Through Hole	1	Polyester Thermoplastic	20	Black
EDAC Inc. 717-020-541-201	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female				Dual	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit Wire Wrap	Gold	Copper Alloy	Through Hole	2	Polyester Thermoplastic	20	Black	10
EDAC Inc. 717-020-545-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	20	20	20	Single	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit Wire Wrap	Gold	Copper Alloy	Through Hole	1	Polyester Thermoplastic	20	Black
EDAC Inc. 717-020-520-201	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female				Dual	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	2	Polyester Thermoplastic	20	Black	10
EDAC Inc. 717-020-525-201	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female				Dual	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	2	Polyester Thermoplastic	20	Black	10
EDAC Inc. 717-020-560-201	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female				Dual	0.76 Ám	30 Áin	Cantilever Make Before Break	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	2	Polyester Thermoplastic	20	Black	10
EDAC Inc. 717-020-520-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	20	20	20	Single	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	1	Polyester Thermoplastic	20	Black
EDAC Inc. 717-020-522-201	2	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Dual Edge	Female				Dual	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	2	Polyester Thermoplastic	20	Black	10
EDAC Inc. 717-020-525-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	20	20	20	Single	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	1	Polyester Thermoplastic	20	Black
EDAC Inc. 717-020-522-101	1	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	Non Specified - Single Edge	Female	20	20	20	Single	0.76 Ám	30 Áin	Cantilever	0.156 in	3.96 mm	Press-Fit	Gold	Copper Alloy	Through Hole	1	Polyester Thermoplastic	20	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 6.36
Newark	Each	25	$ 6.60
		50	$ 6.45
		100	$ 6.14
		250	$ 5.99
		500	$ 5.78

Description

General part information

717-020 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
