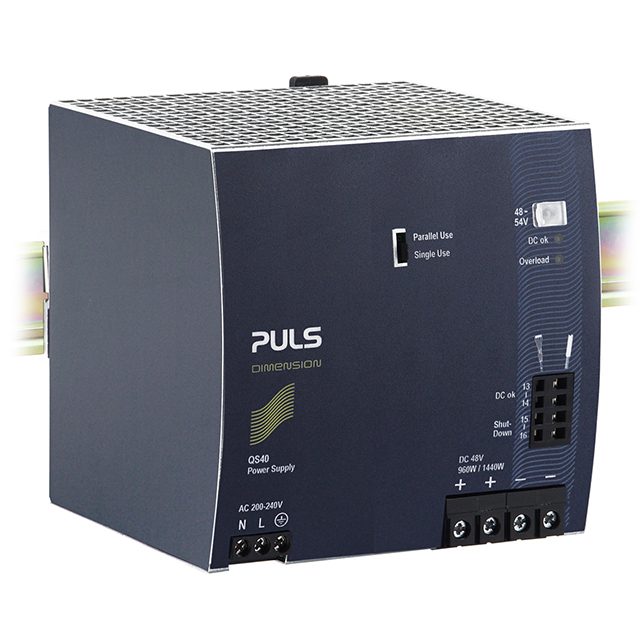

QS40.484

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 960W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QS40.484

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 960W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1093.50

Description

General part information

QS40 Series

AC/DC DIN RAIL SUPPLY 48V 960W

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QS40.484	QS40 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	170 VAC	90 - 170 VAC
Applications	ITE (Commercial)	ITE (Commercial), Hazardous Locations
Approval Agency	UL, IEC, ABS, EAC, DNV GL	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC, SEMI
Current - Output (Max) [Max]	20 A	20 - 40 A
Efficiency	95 %	94.6 - 95 %
Features	PFC, Adjustable Output, Load Sharing	PFC, Adjustable Output, Load Sharing
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	960 W	960 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	4.88 in	4.88 in
Size / Dimension [y]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Size / Dimension [z]	124 mm	124 mm
Standard Number	61010-2-201, 60950-1, 508	61010-2-201, 60950-1, 508, Class I Div 2, F47
Voltage - Isolation	500 V	500 V
Voltage - Output 1	48 V	24 - 48 V

QS40 Series

AC/DC DIN RAIL SUPPLY 48V 960W

Part	Approval Agency	Efficiency	Applications	Input Type	Voltage - Output 1	Number of Outputs	Standard Number	Power (Watts)	Current - Output (Max) [Max]	Voltage - Isolation	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]
PULS, LP QS40.481	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	95 %	ITE (Commercial)	AC	48 V	1	508, 60950-1, 61010-2-201, Class I Div 2	960 W	20 A	500 V	90 VAC	264 VAC	Adjustable Output, Load Sharing, PFC	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	-10 °C	70 °C
PULS, LP QS40.361	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	94.6 %	ITE (Commercial)	AC	36 V	1	508, 60950-1, 61010-2-201, Class I Div 2	960 W	26.7 A	500 V	90 VAC	264 VAC	Adjustable Output, Load Sharing, PFC	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	-10 °C	70 °C
PULS, LP QS40.484	ABS, DNV GL, EAC, IEC, UL	95 %	ITE (Commercial)	AC	48 V	1	508, 60950-1, 61010-2-201	960 W	20 A	500 V	170 VAC	264 VAC	Adjustable Output, Load Sharing, PFC	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	-10 °C	70 °C
PULS, LP QS40.241	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL	94.6 %	Hazardous Locations, ITE (Commercial)	AC	24 V	1	508, 60950-1, 61010-2-201, Class I Div 2	960 W	40 A	500 V	90 VAC	264 VAC	Adjustable Output, Load Sharing, PFC	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	-10 °C	70 °C
PULS, LP QS40.244	ABS, DNV GL, EAC, IEC, SEMI, UL	94.6 %	ITE (Commercial)	AC	24 V	1	508, 60950-1, 61010-2-201, F47	960 W	40 A	500 V	170 VAC	264 VAC	Adjustable Output, Load Sharing, PFC	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	-10 °C	70 °C
