C404ALBSBSW6WN55PAB
ActiveFocus LCDs

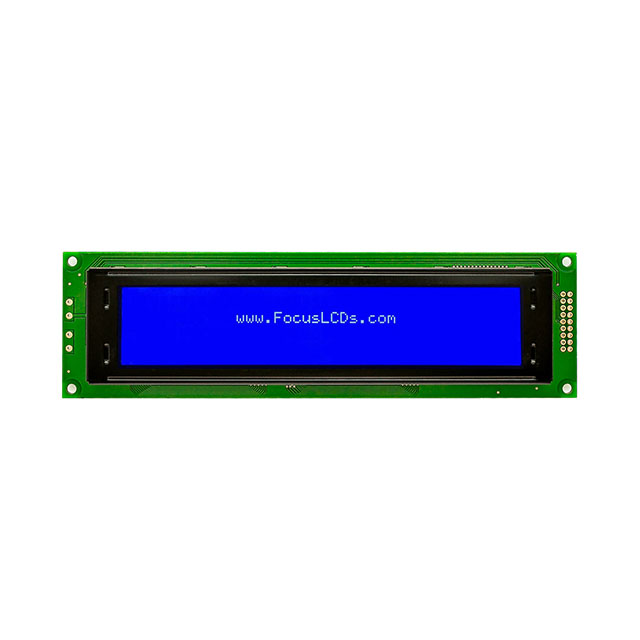

40X4 STN BLUE CHARACTER LCD
C404ALBSBSW6WN55PAB
ActiveFocus LCDs
40X4 STN BLUE CHARACTER LCD
Description
General part information
C404ALBSBSW6WN55PAB
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 190.00mm x 54.00mm x 13.00mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C404ALBSBSW6WN55PAB |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 4.89 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.78 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | SPLC780D |
| Display Columns | 40 |
| Display Mode | Transmissive |
| Display Rows | 4 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 0.55 mm |
| Dot Size Width | 0.5 mm |
| Interface | Parallel |
| Number of Characters | 160 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13 mm |
| Outline Length | 190 mm |
| Outline Width | 54 mm |
| Text Color | White |
| Viewing Area Length | 147 mm |
| Viewing Area Width | 29.5 mm |
| Voltage - Supply | 5 VDC |
