Description
General part information

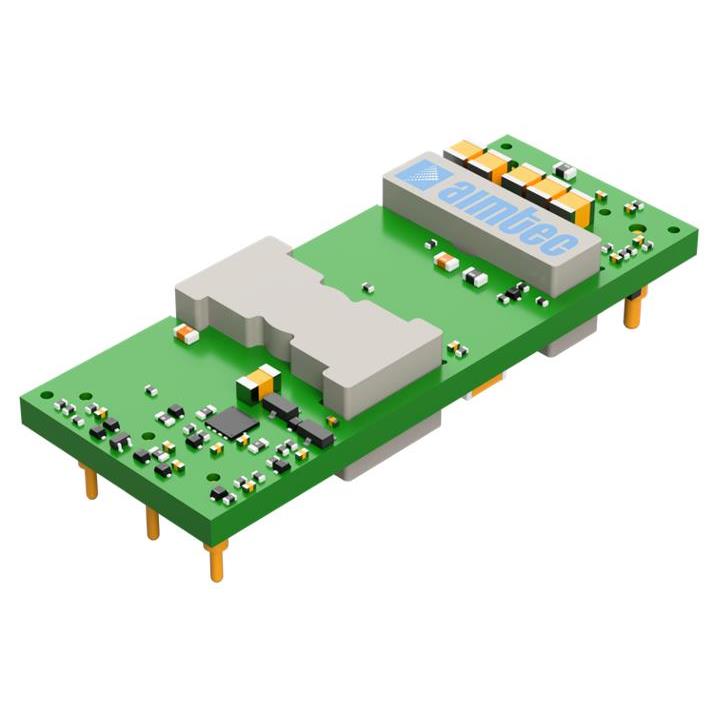

AM100EBO-4824SNZ-B
Isolated Module DC DC Converter 1 Output 24V 4.17A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AM100EBO-4824SNZ-B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 4.17 A |
| Efficiency | 92 % |
| Features | Remote Sense, Adjustable Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Eighth Brick |
| Power (Watts) | 100 W |
| Size / Dimension Height | 0.38 in |
| Size / Dimension Length | 2.3 in |
| Size / Dimension Width | 0.9 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 24 V |
