IPD2012-760S

Active

Inventus Power

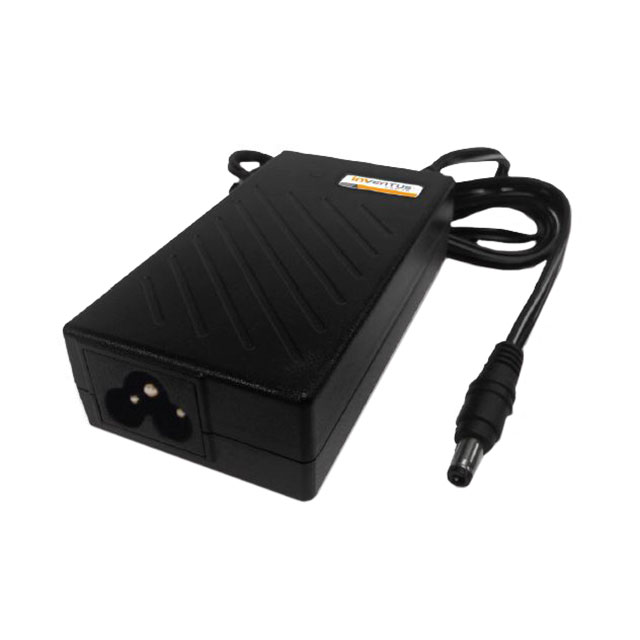

AC/DC DESKTOP ADAPTER 12V 19W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 19W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DESKTOP ADAPTER 12V 19W

Part	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Form	Polarization	Cord Length	Cord Length	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	No Load Power Consumption	Voltage - Output	Weight	Weight	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max) [Max]	Power (Watts)	Input Connector	Input Type
Inventus Power IPD2012-760	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	North America	Desktop (Class I)	Positive Center	1.22 m	48 in	Level VI	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in	100 mW	12 V	160.12 g	0.353 lb	CB, CE, cTUVus	60 °C	0 °C	ITE (Commercial)	1.6 A	19 W	IEC 320-C6	Cord
Inventus Power IPD2012-760S	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	North America	Desktop (Class I)	Positive Center	1.22 m	48 in	Level VI	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in	100 mW	12 V	160 g	0.35 lb	CE, cTUVus	60 °C	0 °C	ITE (Commercial)	1.6 A	19 W	IEC 320-C6	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.84

General part information

12V 19 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
