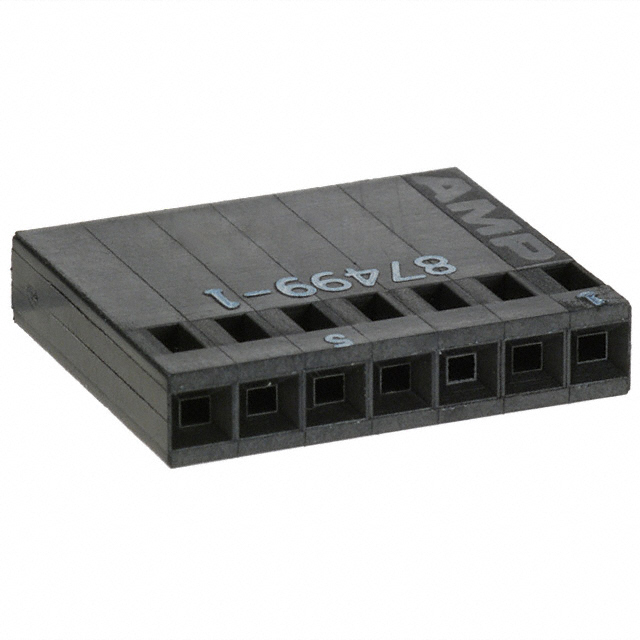

87499-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 7POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87499-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 7POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87499-1 | 87499 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 7 | 2 - 36 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
87499 Series
CONN RCPT HSG 11POS 2.54MM
| Part | Contact Termination | Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Pitch [x] | Pitch [x] | Note | Mounting Type | Contact Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-87499-0 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 11 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 2-87499-6 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 14 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 2-87499-8 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 15 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 4-87499-0 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 21 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 3-87499-4 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 18 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 2-87499-4 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 13 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 5-87499-4 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 28 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 3-87499-7 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 20 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 87499-3 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 2 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
TE Connectivity AMP Connectors 5-87499-8 | Crimp | Black | 1 | -65 ░C | 105 ░C | Receptacle | 30 | 2.54 mm | 0.1 in | Contacts Not Included | Free Hanging (In-Line) | Male or Female | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.51 | |
| 10 | $ 1.38 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.23 | |||
| 250 | $ 1.21 | |||
| 500 | $ 1.10 | |||
| 1000 | $ 0.98 | |||
| 2500 | $ 0.91 | |||
Description
General part information
87499 Series
7 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
