1551UBK
ActiveHammond Manufacturing
BOX ABS BLACK 3.94"L X 1.57"W
1551UBK
ActiveHammond Manufacturing
BOX ABS BLACK 3.94"L X 1.57"W
Description
General part information
1551UBK

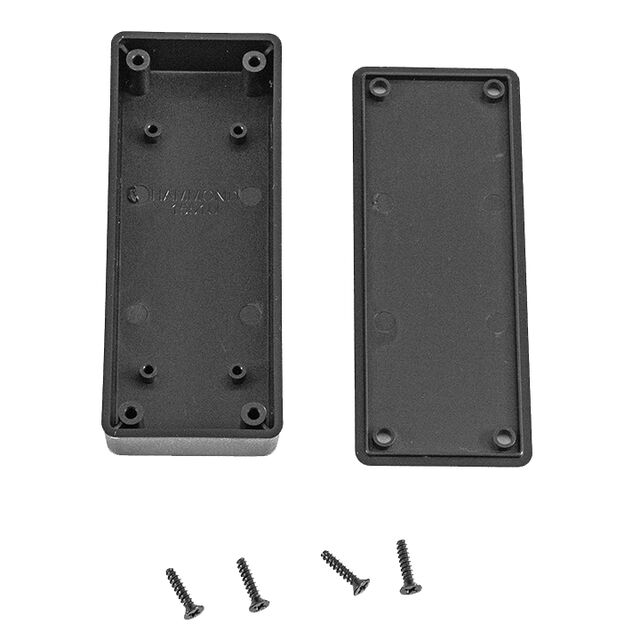

Box ABS Black Hand Held, Cover Included 3.940" L x 1.570" W (100.08mm x 39.88mm) X 0.790" (20.07mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1551UBK |
|---|---|
| Area (L x W) | 6.18 in² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included, Hand Held |
| Height | 0.79 in |
| Material | ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP54 |
| Size / Dimension Length | 3.94 in |
| Size / Dimension Width | 1.57 in |
| Thickness | 0.08 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
