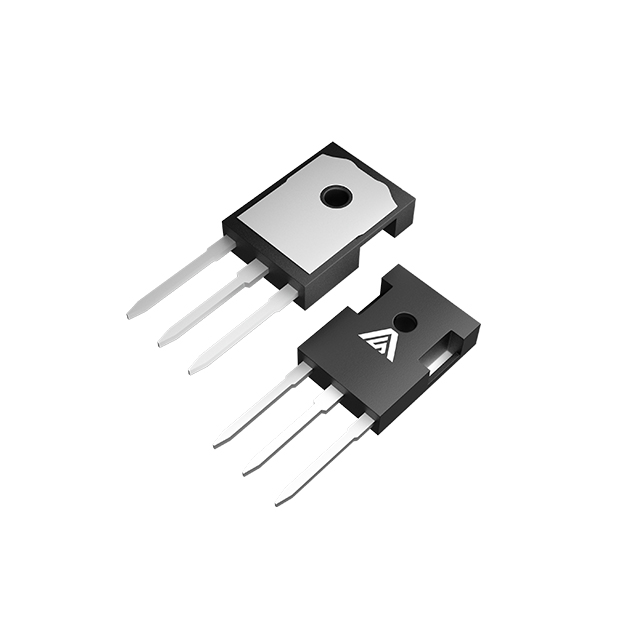

AS3D030120P2

Active

ANBON SEMICONDUCTOR (INT'L) LIMITED

DIODE ARR SIC 1200V 42A TO247-3

Search across all available documentation for this part.

Active

ANBON SEMICONDUCTOR (INT'L) LIMITED

DIODE ARR SIC 1200V 42A TO247-3

Technical Specifications

Parameters and characteristics for this part

Specification	AS3D030120P2

Current - Average Rectified (Io) (per Diode)	42 A
Current - Reverse Leakage @ Vr	20 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-3
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-247-3
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If [Max]	1.8 V

DIODE ARR SIC 1200V 42A TO247-3

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Diode Configuration	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io) (per Diode)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Mounting Type	Technology	Reverse Recovery Time (trr)	Supplier Device Package
ANBON SEMICONDUCTOR (INT'L) LIMITED AS3D030120P2	1.8 V	1 Pair Common Cathode	20 µA	42 A	No Recovery Time	1.2 kV	175 ░C	-55 C	TO-247-3	Through Hole	SiC (Silicon Carbide) Schottky	0 ns	TO-247-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 1200 V 42A Through Hole TO-247-3

Technical documentation and resources

No documents available
