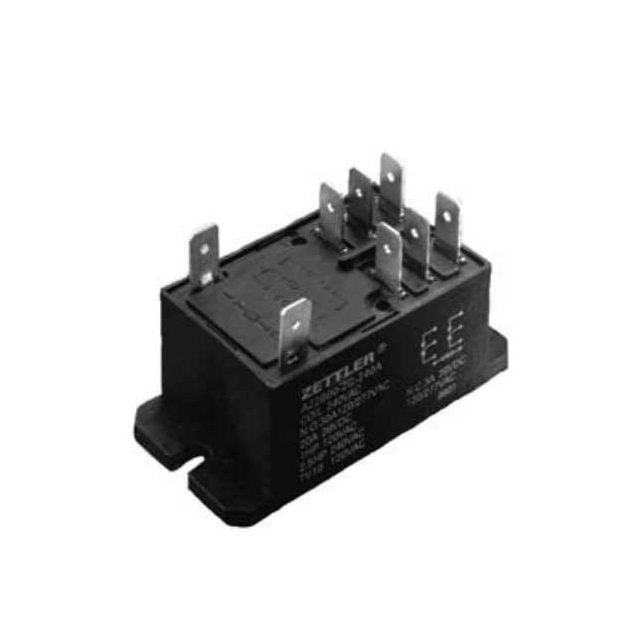

AZ2800-2A-240AE

Active

American Zettler

RELAY EV CHG SOLAR DPST 40A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2800-2A-240AE

Active

American Zettler

RELAY EV CHG SOLAR DPST 40A 240V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.23
		20	$ 7.72
		40	$ 6.52
		80	$ 6.17
		240	$ 6.04

Description

General part information

AZ2800-2A Series

General Purpose Relay DPST-NO (2 Form A) 240VAC Coil Chassis Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ2800-2A-240AE	AZ2800-2A Series

Approval Agency	UL, VDE, cUR	UL, VDE, cUR
Coil Current	16.7 mA	14.4 - 340 mA
Coil Insulation	Class F	Class F
Coil Resistance	4.5 kOhms	1.125 - 4700 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	240 VAC	12 - 277 VDC
Contact Form	DPST-NO (2 Form A)	DPST-NO (2 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A	40 A
Load - Max Switching	1200 W, 11080 VA	1200 - 11080 W
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	192 VAC	4.5 - 221.6 VAC
Must Release Voltage	48 VAC	0.6 - 55.4 VDC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	65 °C	65 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage	30 VDC, 600 VAC	30 - 600 VDC
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Quick Connect - 0.187"/0.250"

AZ2800-2A Series

RELAY GEN PURPOSE DPST 40A 36V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Release Voltage	Contact Material	Operate Time	Switching Voltage	Coil Insulation	Contact Form	Coil Type	Relay Type	Approval Agency	Coil Voltage	Contact Rating (Current)	Load - Max Switching	Termination Style	Release Time	Coil Resistance	Coil Current	Must Operate Voltage	Seal Rating
American Zettler AZ2800-2A-36D	85 °C	-40 °C	Chassis Mount	3.6 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	36 VDC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms
American Zettler AZ2800-2A-24A	65 °C	-40 °C	Chassis Mount	4.8 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	24 VAC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	35.7 Ohms	166 mA	19.2 VAC
American Zettler AZ2800-2A-240A6E	65 °C	-40 °C	Chassis Mount	48 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	240 VAC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	3.8 kOhms	16.7 mA	192 VAC	Sealed - Fully
American Zettler AZ2800-2A-6D	85 °C	-40 °C	Chassis Mount	0.6 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE		40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	22 Ohms	272 mA	4.5 VDC
American Zettler AZ2800-2A-277A	65 °C	-40 °C	Chassis Mount	55.4 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	277 VAC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	4700 Ohms	14.4 mA	221.6 VAC
American Zettler AZ2800-2AE-24D	85 °C	-40 °C	Chassis Mount	2.4 VDC	Silver Tin Oxide (AgSnO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	24 VDC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	350 Ohms	68.5 mA	18 VDC
American Zettler AZ2800-2A-240A5	65 °C	-40 °C	Chassis Mount	48 VAC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	240 VAC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	3.8 kOhms	16.7 mA	192 VAC
American Zettler AZ2800-2A-28D	85 °C	-40 °C	Chassis Mount	2.8 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	28 VDC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms
American Zettler AZ2800-2AE-240A5	65 °C	-40 °C	Chassis Mount	48 VAC	Silver Tin Oxide (AgSnO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	240 VAC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	3.8 kOhms	16.7 mA	192 VAC
American Zettler AZ2800-2A-12DE	85 °C	-40 °C	Chassis Mount	1.2 VDC	Silver Cadmium Oxide (AgCdO)	25 ms	30 VDC, 600 VAC	Class F	DPST-NO (2 Form A)	Non Latching	General Purpose	cUR, UL, VDE	12 VDC	40 A	1200 W, 11080 VA	Quick Connect - 0.250" (6.3mm)	25 ms	86 Ohms	140 mA	9 VDC	Sealed - Fully
