130552
ActiveTE Connectivity AMP Connectors

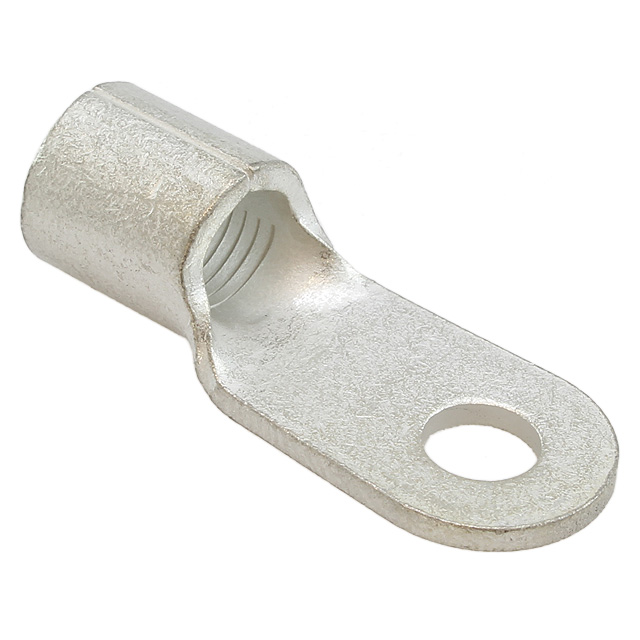

CONN RING CIRC 6AWG M5 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
130552
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 6AWG M5 CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 130552 | 1305 Series |
|---|---|---|
| Color | - | Blue, White |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated | Non-Insulated, Insulated |
| Insulation Diameter | - | 4.9 mm |
| Insulation Diameter | - | 3 mm |
| Insulation Diameter | - | 0.193 in |
| Insulation Diameter | - | 0.118 in |
| Length - Overall | - | 0.554 - 0.938 in |
| Length - Overall | - | 14.07 - 23.83 mm |
| Length - Overall [x] | 29.7 mm | 20.4 - 29.7 mm |
| Length - Overall [x] | 1.169 " | 0.803 - 1.169 " |
| Length - Ring Center to Termination | - | 0.25 - 0.437 " |
| Length - Ring Center to Termination | - | 6.35 - 11.1 mm |
| Length - Termination | - | 9.8 mm |
| Length - Termination | - | 0.386 " |
| Length - Termination | - | 0.179 " |
| Length - Termination | - | 4.55 mm |
| Material - Insulation | - | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud | M5 Stud |
| Stud/Tab Size | - | 0.25 - 4 Stud |
| Terminal Type | Circular | Circular, Standard, Flat Sided |
| Termination | Crimp | Crimp |
| Thickness | 1.45 mm | 0.79 - 1.45 mm |
| Thickness | 0.057 in | 0.031 - 0.057 in |
| Tongue Inside Opening | - | 0.119 - 0.25 in |
| Tongue Inside Opening | - | 3.02 - 6.35 mm |
| Width - Outer Edges | - | 5.54 mm |
| Width - Outer Edges | - | 0.218 in |
| Width - Outer Edges | - | 5.59 mm |
| Width - Outer Edges | - | 0.22 in |
| Width - Outer Edges [y] | 11.91 mm | 11.89 - 12 mm |
| Width - Outer Edges [y] | 0.469 in | 0.468 - 0.472 in |
| Wire Gauge | 6 AWG | 6 - 8 AWG |
| Wire Gauge | - | 22 AWG |
| Wire Gauge | - | 16 AWG |
1305 Series
CONN RING CIRC 8AWG #1/4 CRIMP
| Part | Features | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge | Length - Overall | Length - Overall | Contact Finish | Insulation | Termination | Thickness | Thickness | Stud/Tab Size | Terminal Type | Contact Material | Mounting Type | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Color | Length - Termination [x] | Length - Termination [x] | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Length - Termination | Length - Termination | Width - Outer Edges [x] | Width - Outer Edges [x] | Width - Outer Edges | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 130550 | Brazed Seam, Serrated Termination | 0.468 in | 11.89 mm | 8 AWG | 0.938 in | 23.83 mm | Tin | Non-Insulated | Crimp | 0.048 in | 1.22 mm | 0.25 Stud | Circular | Copper | Free Hanging (In-Line) | |||||||||||||||||||||||
TE Connectivity AMP Connectors 130552 | Brazed Seam, Serrated Termination | 0.469 in | 11.91 mm | 6 AWG | Tin | Non-Insulated | Crimp | 0.057 in | 1.45 mm | Circular | Copper | Free Hanging (In-Line) | 29.7 mm | 1.169 " | M5 Stud | |||||||||||||||||||||||
TE Connectivity AMP Connectors 130568 | Serrated Termination | 0.472 in | 12 mm | Tin | Insulated | Crimp | 0.25 Stud | Standard | Copper | Free Hanging (In-Line) | 26.9 mm | 1.059 " | 0.437 " | 11.1 mm | 4.9 mm | 3 mm | 0.193 in | 0.118 in | Blue | 9.8 mm | 0.386 " | 0.25 in | 6.35 mm | Poly-Vinyl Chloride (PVC) | ||||||||||||||
TE Connectivity AMP Connectors 130524 | Brazed Seam, Serrated Termination | 0.554 " | 14.07 mm | Tin | Non-Insulated | Crimp | 4 Stud | Standard | Copper | Free Hanging (In-Line) | 0.25 in | 6.35 mm | 0.119 in | 3.02 mm | 22 AWG | 16 AWG | 0.179 " | 4.55 mm | 5.54 mm | 0.218 in | ||||||||||||||||||
TE Connectivity AMP Connectors 130565 | Serrated Termination | Tin | Insulated | Crimp | 0.031 in | 0.79 mm | Flat Sided | Copper | Free Hanging (In-Line) | 20.4 mm | 0.803 in | White | 5.59 mm | 0.22 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.59 | |
| 10 | $ 1.46 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.30 | |||
| 300 | $ 1.28 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 1.04 | |||
| 2500 | $ 0.96 | |||
Description
General part information
1305 Series
Ring Terminal Connector M5 Stud Circular 6 AWG Crimp
