8461ZH 010500

Active

Belden Inc.

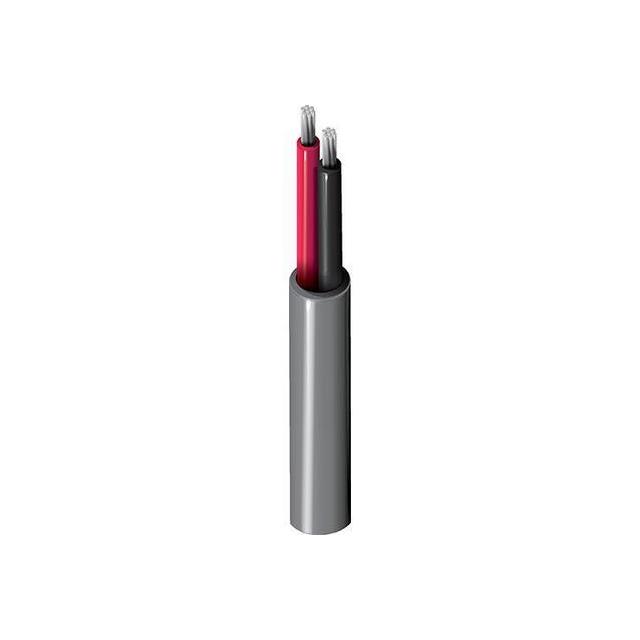

CABLE 2COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	8461ZH 010500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Thickness	0.686 mm
Jacket (Insulation) Thickness	0.027 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Usage	Voltage	Number of Conductors	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 8461ZH 010500	Black	26 AWG	7	Polypropylene (PP)	Audio Control Instrumentation	300 V	2	18 AWG	0.686 mm	0.027 in	Multi-Conductor	Copper Tinned	500 '	152.4 m	5.33 mm	0.21 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 18 AWG 500.0' (152.4m)

Technical documentation and resources
