19312500001
ObsoleteLITTELFUSE

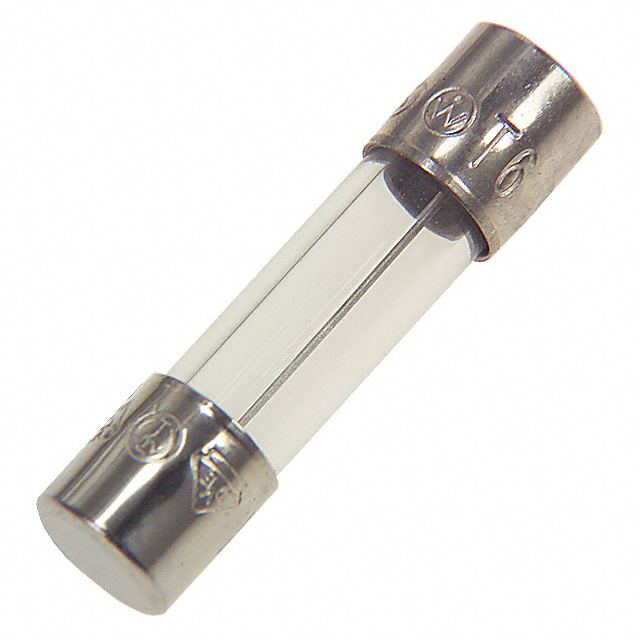

FUSE GLASS 2.5A 250VAC 5X20MM
19312500001
ObsoleteLITTELFUSE
FUSE GLASS 2.5A 250VAC 5X20MM
Description
General part information
19312500001
2.5 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 19312500001 |
|---|---|
| Approval Agency | VDE, cURus, SEMKO |
| Breaking Capacity | 35 A |
| Current Rating | 2.5 A |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 13 |
| Mounting Type | Requires Holder |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
