FRT.00.250.CTA50

Active

LEMO

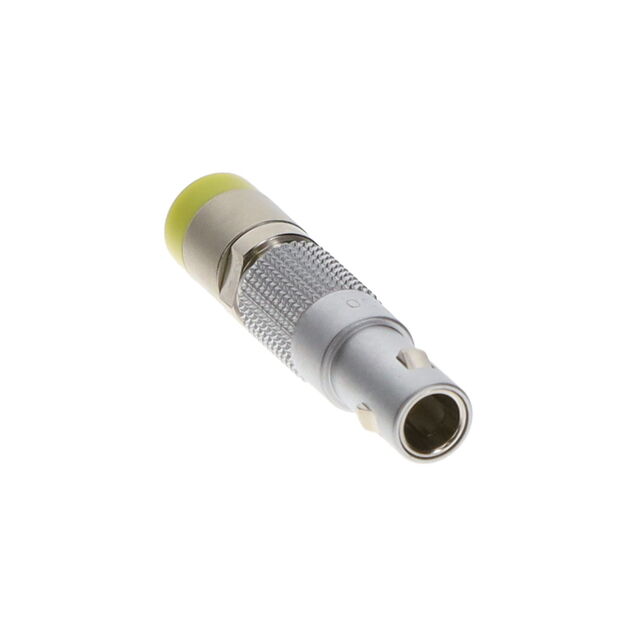

CONN NIMCAMA PLG STR 50OHM SOLDR

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMA PLG STR 50OHM SOLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FRT.00.250.CTA50	FRT.00 Series

Body Finish	Chrome	Nickel, Chrome
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	50Ohm Resistor	Shorted Resistor, 50Ohm Resistor
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

CONN NIMCAMA PLG STR 50OHM SOLDR

Part	Connector Type	Impedance	Center Contact Material	Housing Color	Body Finish	Features	Ingress Protection	Mounting Type	Fastening Type	Mating Cycles	Voltage Rating	Center Contact Plating	Shield Termination	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Connector Style	Number of Ports	Dielectric Material
LEMO FRT.00.250.NTA00	Male Pin, Plug	50 Ohms	Brass	Silver	Nickel	Shorted Resistor	IP50	Free Hanging (In-Line)	Push-Pull	5000	700 VDC	Gold	Solder	Solder	-55 °C	260 ░C	Brass	NIM-CAMAC CD/N 549	1	Polytetrafluoroethylene (PTFE)
LEMO FRT.00.250.NTA50	Male Pin, Plug	50 Ohms	Brass	Silver	Nickel	50Ohm Resistor	IP50	Free Hanging (In-Line)	Push-Pull	5000	700 VDC	Gold	Solder	Solder	-55 °C	260 ░C	Brass	NIM-CAMAC CD/N 549	1	Polytetrafluoroethylene (PTFE)
LEMO FRT.00.250.CTA50	Male Pin, Plug	50 Ohms	Brass	Silver	Chrome	50Ohm Resistor	IP50	Free Hanging (In-Line)	Push-Pull	5000	700 VDC	Gold	Solder	Solder	-55 °C	260 ░C	Brass	NIM-CAMAC CD/N 549	1	Polytetrafluoroethylene (PTFE)
