WO-4209M-01S

Active

LIN ENGINEERING

STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

STEPPER MOTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

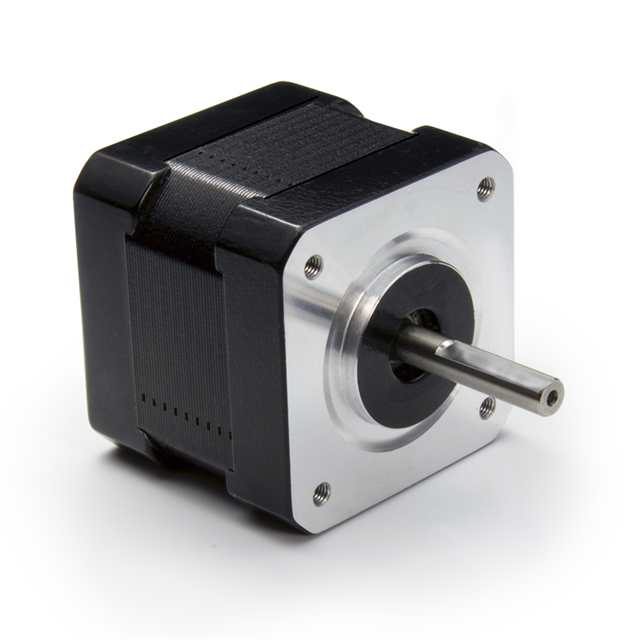

Bipolar Stepper Motor Frame Size 17 400.0 Step 840 mA 24VDC

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

STEPPER MOTOR

Part	Step Angle	Operating Temperature [Max]	Operating Temperature [Min]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Rotor Inertia	Steps per Revolution	Termination Style	Mounting Hole Spacing	Mounting Hole Spacing	NEMA Frame Size	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Coil Type	Coil Resistance	Voltage - Rated	Current Rating (Amps)	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)
LIN ENGINEERING WO-4209M-01P	0.9 °	50 °C	-20 C	24 mm	0.945 in	Round Shaft	42.4 mm	1.669 in	42.4 mm	1.669 in	1.3 gcm²	400	Wire Leads	1.22 in	31 mm	17	0.197 in	5 mm	Bipolar	1.5 Ohms	24 VDC	1.7 A	360 mNm	51 oz-in
LIN ENGINEERING WO-4209M-01S	0.9 °	50 °C	-20 C	24 mm	0.945 in	Round Shaft	42.4 mm	1.669 in	42.4 mm	1.669 in	1.3 gcm²	400	Wire Leads	1.22 in	31 mm	17	0.197 in	5 mm	Bipolar	6.1 Ohms	24 VDC	0.84 A	360 mNm	51 oz-in
