1375875-5

Active

TE Connectivity AMP Connectors

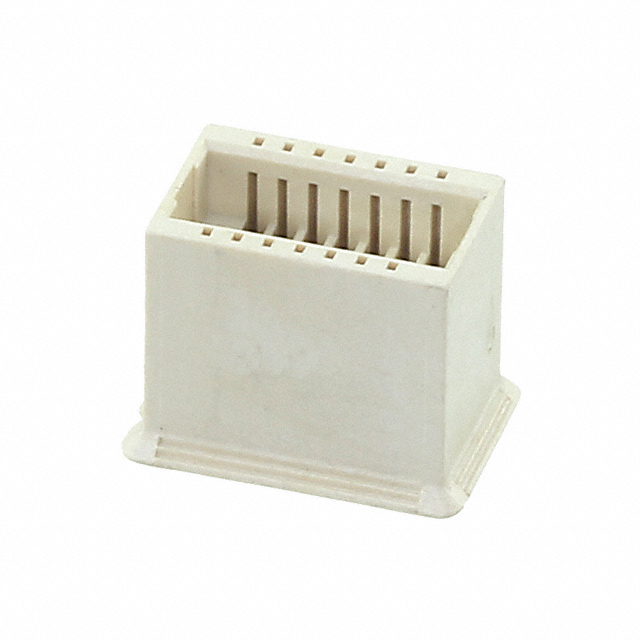

CONN PLUG HSG 14POS 0.80MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1375875-5

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 14POS 0.80MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1375875 Series

14 Rectangular Connectors - Housings Plug Natural 0.031" (0.80mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1375875-5	1375875 Series

Color	Natural	Natural
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Outer Shroud Contact	Outer Shroud Contact
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	14	6 - 40
Number of Positions	-	16
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in
Row Spacing	0.13 in	0.13 in
Row Spacing	3.3 mm	3.3 mm

1375875 Series

CONN PLUG HSG 20POS 0.80MM

Part	Color	Number of Positions	Note	Connector Type	Contact Termination	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Contact Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Material	Number of Positions
TE Connectivity AMP Connectors 1375875-8	Natural	20	Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1375875-3	Natural	10	Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1-1375875-8	Natural	40	Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1375875-1	Natural	6	Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1375875-5	Natural	14	Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 1375875-6	Natural		Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	16
TE Connectivity AMP Connectors 1-1375875-4	Natural		Contacts Not Included	Plug	Crimp	0.8 mm	0.031 in	0.13 in	3.3 mm	Outer Shroud Contact	2	85 °C	-55 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)
