Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3080-150CM |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 2.92 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Jack |
| 2nd Connector Diameter | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 40 Gbps |
| Length | 59.1 in |
| Length (ft) | 4.9 ft |
| Overall Impedance | 50 Ohms |
| Style | 2.92mm to 2.92mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
CAD
3D models and CAD resources for this part
Description
General part information
FMCA3080-150CM

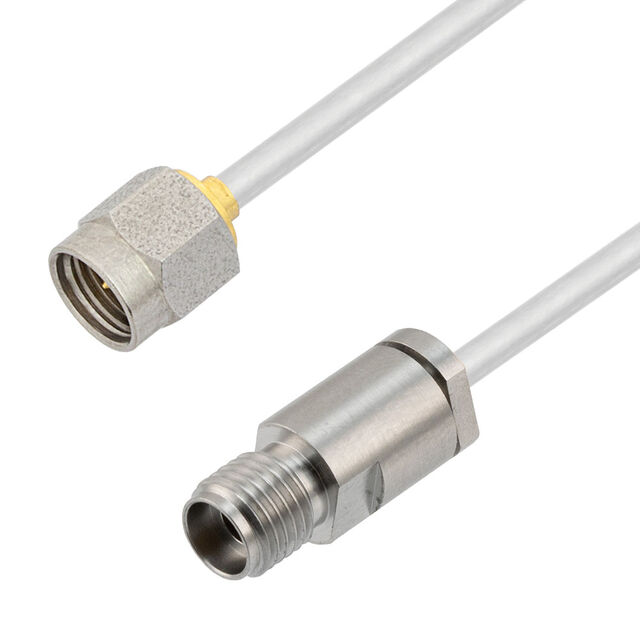

Cable Assembly Coaxial 2.92mm to 2.92mm Hand Formable .047 59.1" (1.5m) 4.9'
