CB1.13-IPX-SARFGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF1-RPSMA J-P 10"
CB1.13-IPX-SARFGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF1-RPSMA J-P 10"
Description
General part information
CB1.13-IPX-SARFGT-10IN

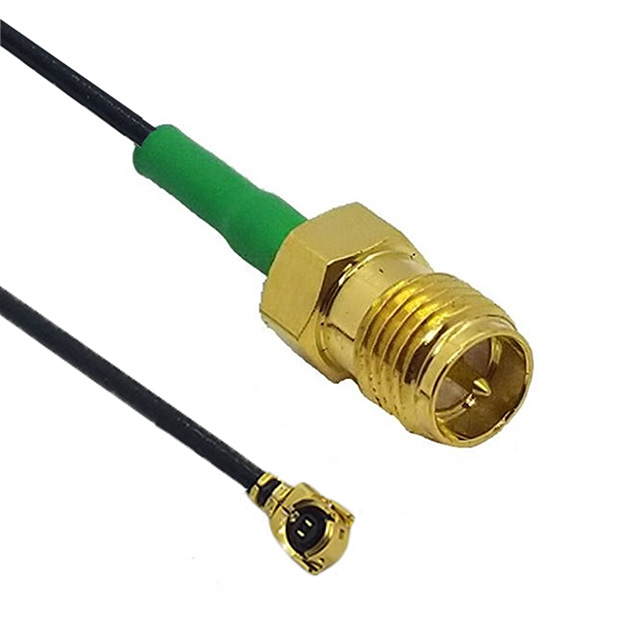

Cable Assembly Coaxial I-PEX MHF1 to RP-SMA 1.13mm OD Coaxial Cable 10.000" (254.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.13-IPX-SARFGT-10IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, U.FL (UMCC), I-PEX MHF1 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 10 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF1 to RP-SMA |
