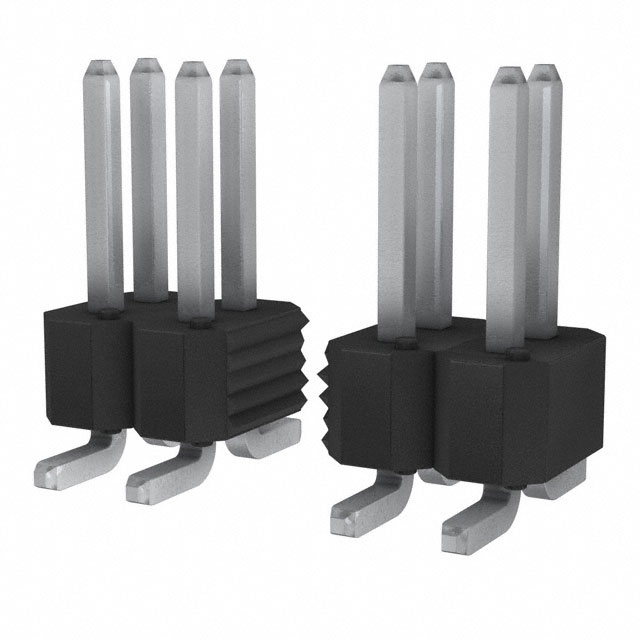

Specification	95278-401B28LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 Ąin
Contact Finish Thickness - Post	78.7 µin
Contact Length - Mating	0.232 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

95278 Series

...

Part	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Material Flammability Rating	Row Spacing - Mating	Number of Rows	Number of Positions	Style	Current Rating (Per Contact)	Pitch - Mating	Contact Length - Mating	Shrouding	Contact Type	Contact Finish - Post	Insulation Color	Contact Material	Mounting Type	Fastening Type	Contact Finish - Mating	Termination	Insulation Height	Contact Shape	Contact Finish Thickness - Post	Features
Amphenol ICC (FCI) 95278-106-04LF	30 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	4	Board	3 A	0.1 in	0.409 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin
Amphenol ICC (FCI) 95278-801-42LF	15 µin	All	Thermoplastic			Header	UL94 V-0	0.1 in	2	42	Board		0.1 in	0.232 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin
Amphenol ICC (FCI) 95278-502-12LF	10 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	12	Board	3 A	0.1 in	0.315 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin
Amphenol ICC (FCI) 95278-801B50	15 µin	All	Thermoplastic			Breakaway Header	UL94 V-0	0.1 in	2	50	Board		0.1 in	0.232 in	Unshrouded	Male Pin	Tin-Lead	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	150 µin	Pick and Place
Amphenol ICC (FCI) 95278-501B04LF	10 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	4	Board	3 A	0.1 in	0.232 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin	Pick and Place
Amphenol ICC (FCI) 95278-102A14LF	30 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	14	Board	3 A	0.1 in	0.315 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin	Pick and Place
Amphenol ICC (FCI) 95278-802B34LF	15 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	34	Board	3 A	0.1 in	0.315 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin	Pick and Place
Amphenol ICC (FCI) 95278-101T06	30 µin	All	Thermoplastic			Breakaway Header	UL94 V-0	0.1 in	2	6	Board		0.1 in	0.232 in	Unshrouded	Male Pin	Tin-Lead	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	150 µin
Amphenol ICC (FCI) 95278-102B16LF	30 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	16	Board	3 A	0.1 in	0.315 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin	Pick and Place
Amphenol ICC (FCI) 95278-102A16LF	30 µin	All	Thermoplastic	125 °C	-65 °C	Breakaway Header	UL94 V-0	0.1 in	2	16	Board	3 A	0.1 in	0.315 in	Unshrouded	Male Pin	Tin	Black	Phosphor Bronze	Surface Mount	Push-Pull	Gold GXT™	Solder	0.1 in	Square	78.7 µin	Pick and Place
