SK34B

Active

Surge

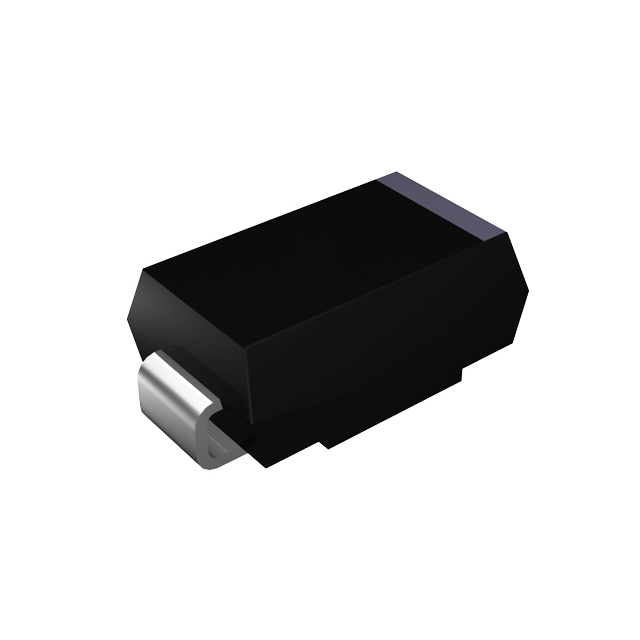

DIODE SCHOTTKY 40V 3A DO214AA

Search across all available documentation for this part.

Active

Surge

DIODE SCHOTTKY 40V 3A DO214AA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SK34B	SK34 Series

Capacitance @ Vr, F	250 pF	250 pF
Current - Average Rectified (Io)	3 A	3 A
Current - Reverse Leakage @ Vr	200 µA	200 µA
Grade	-	Automotive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SMB, DO-214AA	SMB, DO-214AA, SMC, DO-214AB, DO-214AC, SMA
Qualification	-	AEC-Q101
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SMB	SMB
Supplier Device Package	DO-214AA	DO-214AA, DO-214AB (SMC), DO-214AC (SMA)
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV	500 - 550 mV

DIODE SCHOTTKY 40V 3A DO214AA

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Supplier Device Package	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Average Rectified (Io)	Capacitance @ Vr, F	Grade	Qualification
Surge SK34B	40 V	200 µA	DO-214AA, SMB	150 °C	-55 °C	Surface Mount	SMB	DO-214AA	Schottky	500 mV	200 mA, 500 ns	3 A	250 pF
Surge SK34	40 V	200 µA	DO-214AB, SMC	150 °C	-55 °C	Surface Mount		DO-214AB (SMC)	Schottky	550 mV	200 mA, 500 ns	3 A	250 pF
Surge SK34A	40 V	200 µA	DO-214AC, SMA	150 °C	-55 °C	Surface Mount		DO-214AC (SMA)	Schottky	500 mV	200 mA, 500 ns	3 A	250 pF	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 3A Surface Mount DO-214AA (SMB)
