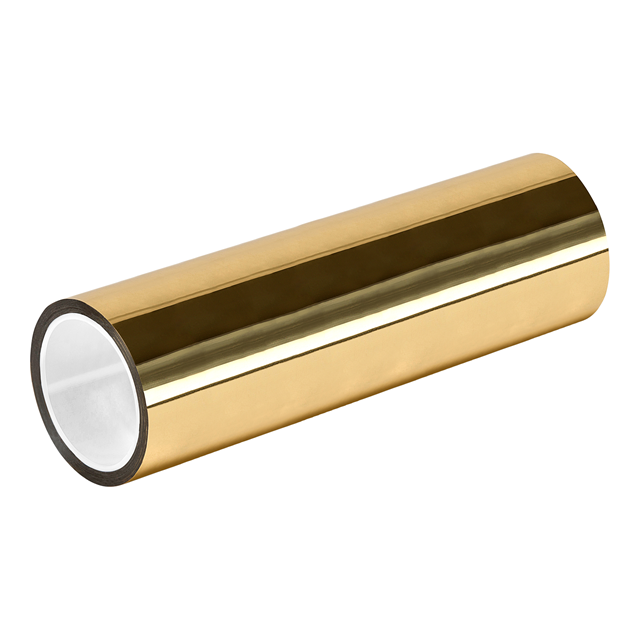

9-72-MPFT-GOLD

Active

TapeCase

TAPE METALLIZED POLY FILM GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9-72-MPFT-GOLD

Active

TapeCase

TAPE METALLIZED POLY FILM GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9-72-MPFT-GOLD	MPFT Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Gold	Green, Red, Black, Gold, Silver
Tape Type	Metallized Polyester Film	Metallized Polyester Film
Temperature Range [Max]	260 °C	260 °C
Temperature Range [Max]	500 °F	500 °F
Temperature Range [Min]	-73 °C	-73 °C
Temperature Range [Min]	-99 °F	-99 °F
Thickness	2 mils	2 mils
Thickness	0.002 in	0.002 in
Thickness	0.051 mm	0.051 mm
Thickness - Backing, Carrier	1.2 mils	1.2 mils
Thickness - Backing, Carrier	0.0012 "	0.0012 "
Thickness - Backing, Carrier	0.03 mm	0.03 mm
Usage	Splicing, Surface Finishing, Detecting	Splicing, Surface Finishing, Detecting

MPFT Series

TAPE METALLIZED POLY FILM GRN

...

Part	Tape Type	Usage	Adhesive	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Backing, Carrier
TapeCase 8-5-MPFT-GREEN	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Green	Polyester Film
TapeCase 1.5-72-MPFT-RED	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Red	Polyester Film
TapeCase 33-72-MPFT-GREEN	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Green	Polyester Film
TapeCase 30-5-MPFT-GREEN	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Green	Polyester Film
TapeCase 1.5-5-MPFT-RED	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Red	Polyester Film
TapeCase 2-5-MPFT-BLACK	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Black	Polyester Film
TapeCase 3/8-72-MPFT-RED	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Red	Polyester Film
TapeCase 9-72-MPFT-GREEN	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Green	Polyester Film
TapeCase 18-5-MPFT-GREEN	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Green	Polyester Film
TapeCase 2-5-MPFT-GOLD	Metallized Polyester Film	Detecting, Splicing, Surface Finishing	Acrylic	-73 °C	260 °C	-99 °F	500 °F	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	Gold	Polyester Film

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2	$ 216.91

Description

General part information

MPFT Series

Metallized Polyester Film Tape Acrylic Adhesive Gold X
