2-1103102-3
ActiveTE Connectivity AMP Connectors

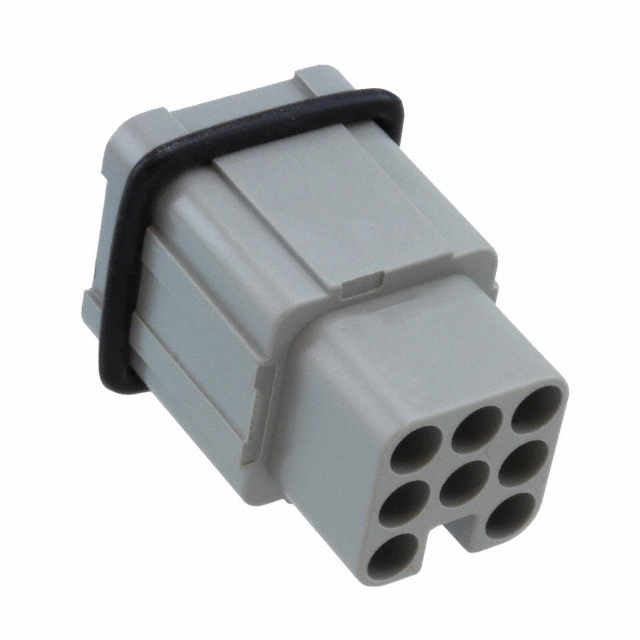

INSERT MALE 7POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103102-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 7POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103102-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HTS HN.D |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Number of Positions | 7+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 1 Gallon |
| Termination Style | Crimp |
| Voltage Rating | 42 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1280 | $ 8.91 | |
1103102 Series
INSERT MALE 7POS+1GND CRIMP
| Part | Number of Positions | Termination Style | Connector Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Type | Size | Gender | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103102-3 | 7+Ground | Crimp | Insert without Contacts | 10 A | 125 °C | -40 °C | 42 VDC | HTS HN.D | 1 Gallon | Male | Gray |
Description
General part information
1103102 Series
Male Insert without Contacts Gray 7+Ground Position Crimp
