CL-421-C4-SD-TS
ActiveCitizen Finedevice Co Ltd
LED RGB SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

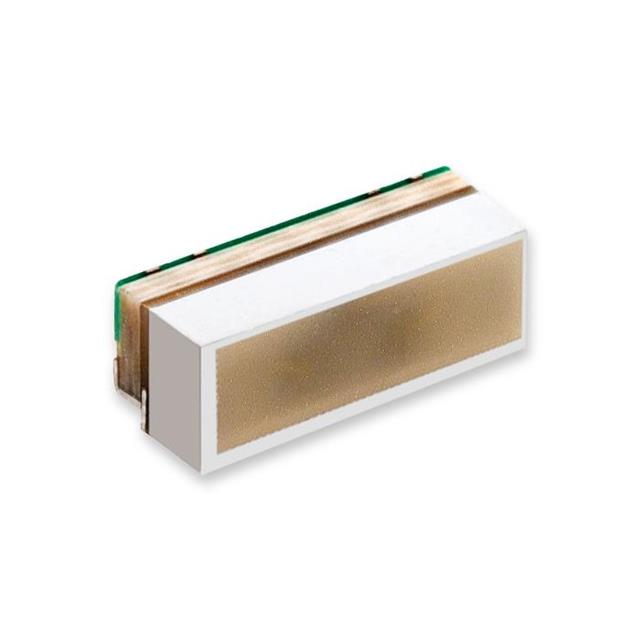

CL-421-C4-SD-TS
ActiveCitizen Finedevice Co Ltd
LED RGB SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-421-C4-SD-TS |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Size [x] | 2.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating [custom] | 700 mcd |
| Millicandela Rating [custom] | 400 mcd |
| Millicandela Rating [custom] | 1350 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [y] | 1.35 mm |
| Voltage - Forward (Vf) (Typ) [custom] | 2.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.45 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Wavelength - Dominant | 470 nm, 530 nm, 624 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 0.82 | |||
| 100 | $ 0.61 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 0.82 | |||
| 100 | $ 0.61 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 3000 | $ 0.49 | ||
| 6000 | $ 0.47 | |||
| 9000 | $ 0.46 | |||
| 15000 | $ 0.45 | |||
| 21000 | $ 0.44 | |||
Description
General part information
CL-421 Series
Red, Green, Blue (RGB) 624nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.45V Green, 3.2V Blue 4-SMD, No Lead
