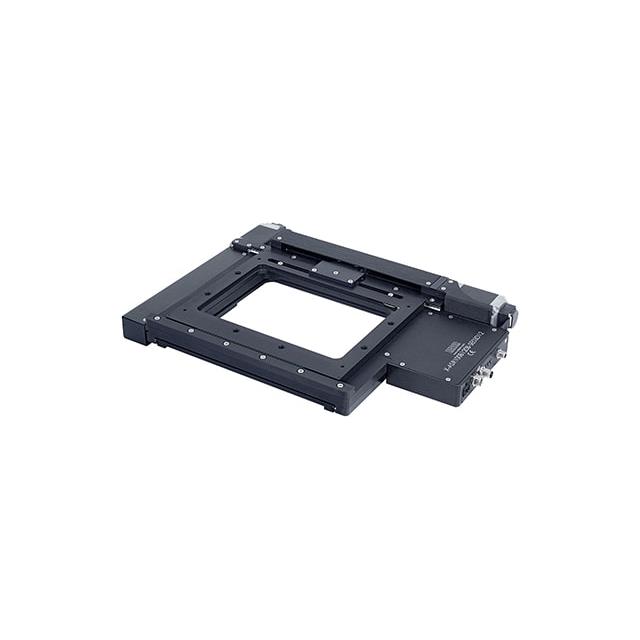

X-ASR100B120B-SE03D12-KX14P
ActiveZaber Technologies
MICROSCOPE STAGE 100-120 MM KNOB
X-ASR100B120B-SE03D12-KX14P
ActiveZaber Technologies
MICROSCOPE STAGE 100-120 MM KNOB
Description
General part information
X-ASR100B120B-SE03D12-KX14P
MICROSCOPE STAGE 100-120 MM KNOB
Technical Specifications
Parameters and characteristics for this part
| Specification | X-ASR100B120B-SE03D12-KX14P |
|---|---|
| Accuracy | 40 µm |
| Approval Agency | CE |
| Construction | Lead Screw |
| Duty Cycle | 100 % |
| Features | Integrated Controller, Translation Stage |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 22.48 lbf |
| Load Force (Static) | 22.48 lbf |
| Motor Type | Bipolar, Stepper |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Speed | 3.35 in/s |
| Stroke Length (Linear) | 4.724 in |
| Termination Style | Connector |
| Type | Linear Axis |
| Voltage - Rated (Max) | 48 V |
| Voltage - Rated (Min) | 24 V |
