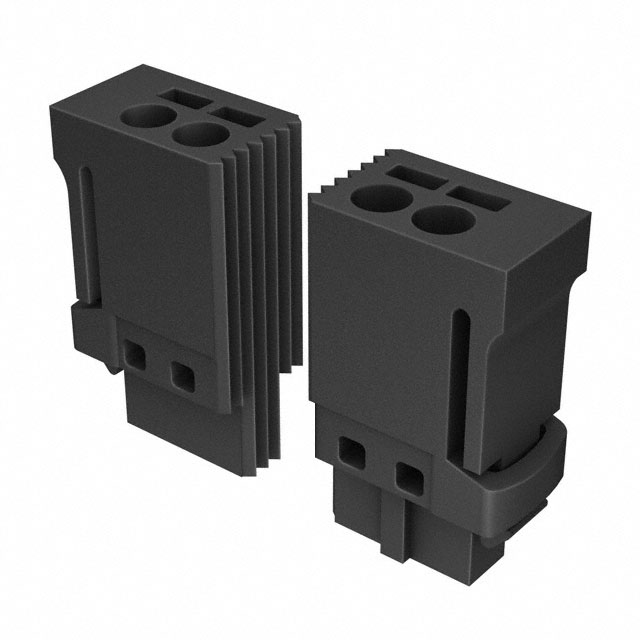

XW4H-10A1

Active

Omron Electronics Inc-EMC Div

TERM BLOCK PLUG 10POS 2.54MM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

TERM BLOCK PLUG 10POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XW4H-10A1	XW4H Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	6 A	6 A
Features	Latch Lock	Latch Lock
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	4.9 mm	4.9 mm
Insulation Height	0.193 in	0.193 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	10	4 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-45 °C	-45 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Positions Per Level	10	4 - 10
Termination Style	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	160 V	160 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	20 AWG	20 AWG
Wire Gauge or Range - mm² [Max]	0.5 mm²	0.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 mm²
Wire Strip Length	6 mm	6 mm

TERM BLOCK PLUG 4POS 2.54MM

Part	Positions Per Level	Features	Housing Material	Voltage - UL	Mounting Type	Wire Strip Length	Insulation Height	Insulation Height	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Positions	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Material	Contact Mating Finish	Current - UL
Omron Electronics Inc-EMC Div XW4H-04A1	4	Latch Lock	Liquid Crystal Polymer (LCP), Glass Filled	160 V	Free Hanging (In-Line)	6 mm	4.9 mm	0.193 in	Push-In Spring, Screwless - Leg Spring	2.54 mm	0.1 in	1	0.5 mm²	0.14 mm²	4	Plug, Female Sockets	Black	125 °C	-45 °C	26 AWG	20 AWG	Copper Alloy	Tin	6 A
Omron Electronics Inc-EMC Div XW4H-05A1	5	Latch Lock	Liquid Crystal Polymer (LCP), Glass Filled	160 V	Free Hanging (In-Line)	6 mm	4.9 mm	0.193 in	Push-In Spring, Screwless - Leg Spring	2.54 mm	0.1 in	1	0.5 mm²	0.14 mm²		Plug, Female Sockets	Black	125 °C	-45 °C	26 AWG	20 AWG	Copper Alloy	Tin	6 A
Omron Electronics Inc-EMC Div XW4H-10A1	10	Latch Lock	Liquid Crystal Polymer (LCP), Glass Filled	160 V	Free Hanging (In-Line)	6 mm	4.9 mm	0.193 in	Push-In Spring, Screwless - Leg Spring	2.54 mm	0.1 in	1	0.5 mm²	0.14 mm²	10	Plug, Female Sockets	Black	125 °C	-45 °C	26 AWG	20 AWG	Copper Alloy	Tin	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.05

General part information

10 Position Terminal Block Plug, Female Sockets 0.100" (2.54mm) 180° Free Hanging (In-Line)
