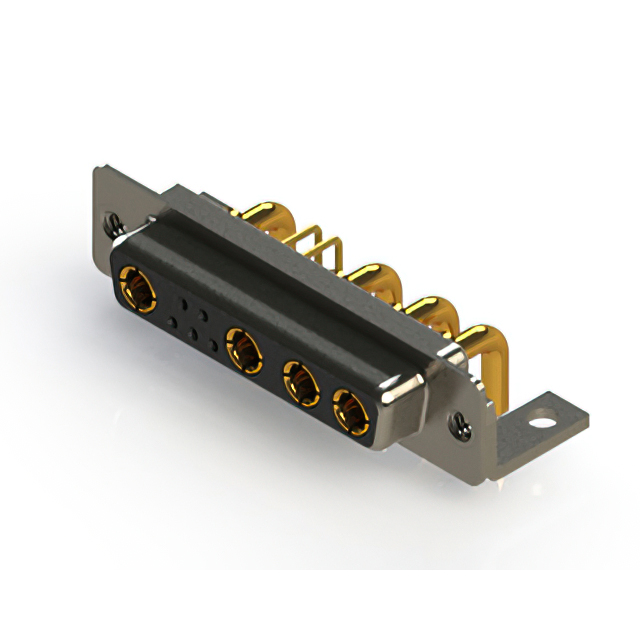

630-9W4-640-2TC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DB-9W4, RECEPTACLE, 9 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

630-9W4-640-2TC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DB-9W4, RECEPTACLE, 9 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-9W4-640-2TC

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder
Voltage Rating	125 VDC

630-9W4 Series

...

Part	Contact Material	Flange Feature	Termination	Material Flammability Rating	Connector Type	Backset Spacing	Backset Spacing	Number of Positions	Color	Voltage Rating	Dielectric Material	Mounting Type	Connector Style	Contact Finish Thickness	Contact Type	Shell Size, Connector Layout	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Contact Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Features	Current Rating (Amps)
EDAC Inc. 630-9W4-240-7N2	Copper Alloy	Housing/Shell (4-40)	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	4 5	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub	Flash	Coax Signal	3 (DB B) - 9W4	2	-55 °C	125 °C	Nickel Plated Steel	Gold
EDAC Inc. 630-9W4-640-2N2	Copper Alloy	Housing/Shell (4-40)	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub		Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C	Nickel Plated Steel	Gold	5 A 20 A	0.76 Ám	30 Áin	4	5
EDAC Inc. 630-9W4-640-2T5	Copper Alloy	4-40	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub		Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold	5 A 20 A	0.76 Ám	30 Áin	4	5	Board Lock Mounting Brackets
EDAC Inc. 630-9W4-640-5T5	Copper Alloy	4-40	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	4 5	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub		Coax Signal	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold		0.76 Ám	30 Áin			Board Lock Mounting Brackets
EDAC Inc. 630-9W4-640-1T6	Copper Alloy	4-40	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub		Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold		0.76 Ám	30 Áin	4	5		10A 5A
EDAC Inc. 630-9W4-240-4TE	Copper Alloy	M3	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub	Flash	Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold	5 A 40 A			4	5	Mounting Brackets
EDAC Inc. 630-9W4-250-2TB	Copper Alloy	Housing/Shell (M3)	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub	Flash	Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold	5 A 20 A			4	5	Board Lock Mounting Brackets
EDAC Inc. 630-9W4-640-1N4	Copper Alloy	Housing/Shell (4-40)	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub		Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C	Nickel Plated Steel	Gold		0.76 Ám	30 Áin	4	5	Mounting Brackets	10A 5A
EDAC Inc. 630-9W4-250-4TD	Copper Alloy	M3	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub	Flash	Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold	5 A 40 A			4	5	Board Lock Mounting Brackets
EDAC Inc. 630-9W4-640-2TC	Copper Alloy	Housing/Shell (M3)	Solder	UL94 V-0	Receptacle Female Sockets	9.4 mm	0.37 in	9	Black	125 VDC	Polyester Thermoplastic	Through Hole Right Angle	Combo D-Sub		Signal and Power	3 (DB B) - 9W4	2	-55 °C	125 °C		Gold	5 A 20 A	0.76 Ám	30 Áin	4	5	Mounting Brackets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 16.47
Newark	Each	1	$ 22.78
		5000	$ 20.14

Description

General part information

630-9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
