2305390-1
ActiveTE Connectivity AMP Connectors
CONN WIRE TO BOARD HDR 10 POS 1.8MM SOLDER RA THRU-HOLE
2305390-1
ActiveTE Connectivity AMP Connectors
CONN WIRE TO BOARD HDR 10 POS 1.8MM SOLDER RA THRU-HOLE
Description
General part information
2305390-1

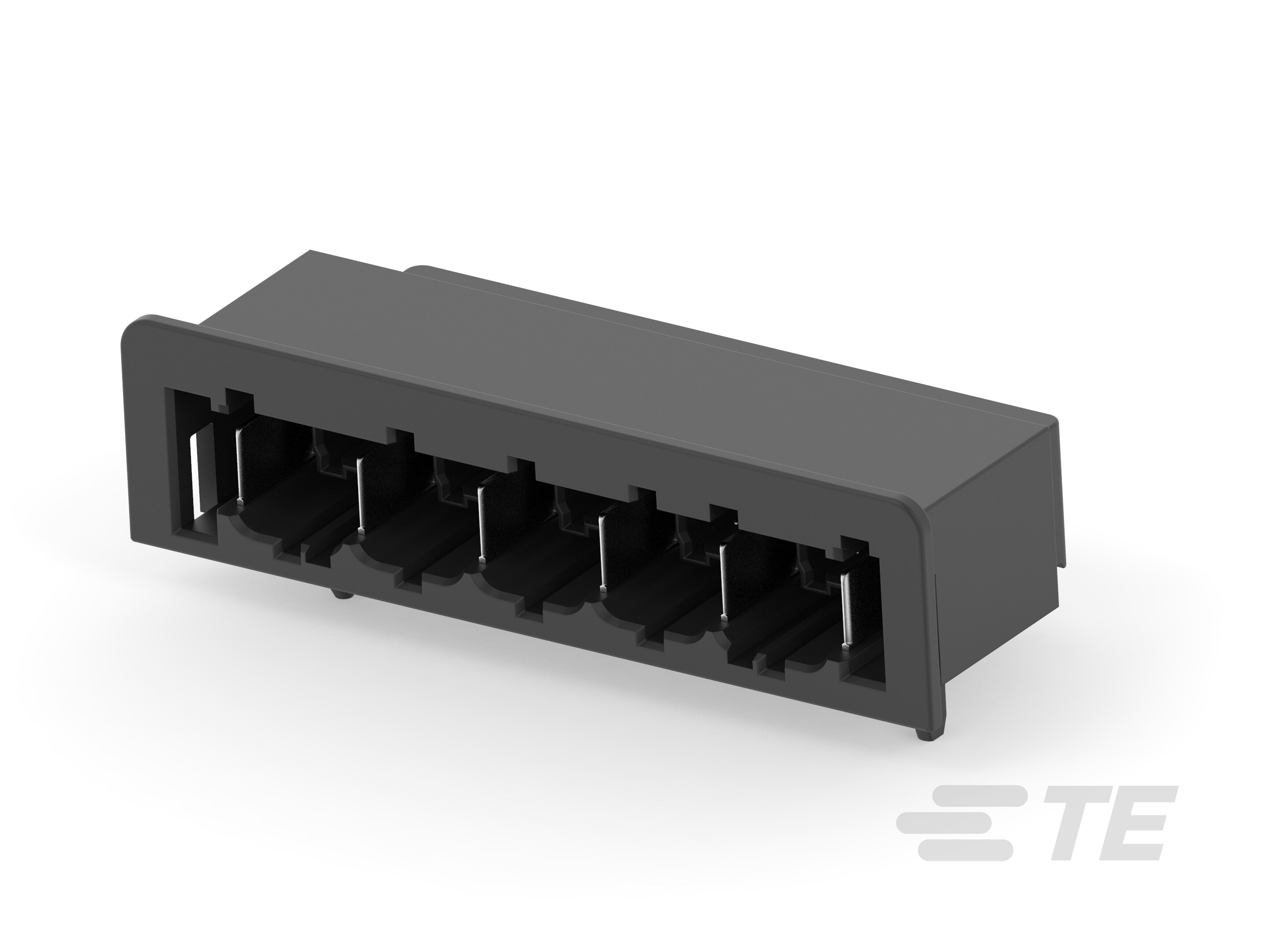

Wire-to-Board, Horizontal, 10 Position, Board Mount, A Code, 1.8 mm [.071 in] Centerline, Signal, Data Connectivity Headers
Technical Specifications
Parameters and characteristics for this part
| Specification | 2305390-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.094 in |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Current Rating | 3 A |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.531 in |
| Insulation Material | Nylon 4T, Polyamide (PA4T), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.071 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 60 V |
