35HDSN12

Active

Switchcraft Inc.

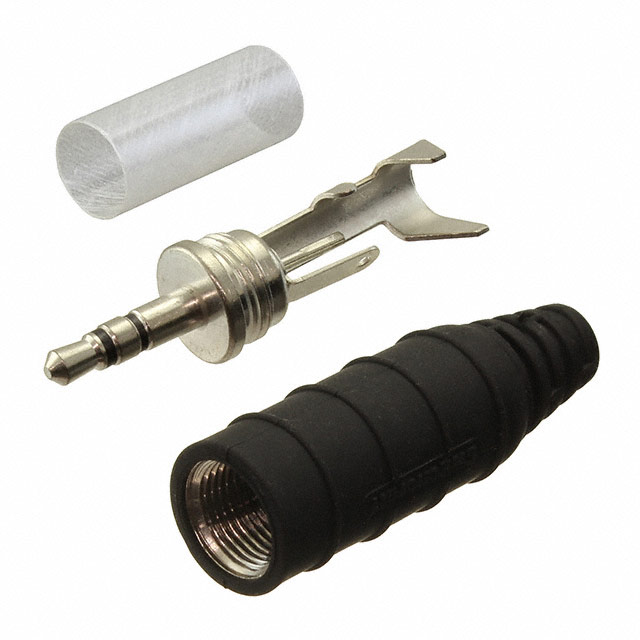

PHONE CONNECTORS 3.5MM SLD STEREO PLG .12 TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35HDSN12

Active

Switchcraft Inc.

PHONE CONNECTORS 3.5MM SLD STEREO PLG .12 TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35HDSN12	35HDSN Series

Actual Diameter [diameter]	3.56 mm	3.56 mm
Actual Diameter [diameter]	0.14 in	0.14 in
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Cable Opening	-	0.15 - 0.175 in
Cable Opening	-	3.81 - 4.45 mm
Cable Opening	-	4.45 mm
Cable Opening	-	0.21 in
Cable Opening	-	5.33 mm
Cable Opening	-	0.175 in
Cable Opening [diameter]	3.18 mm	3.18 mm
Cable Opening [diameter]	0.125 in, 0.15 in	0.125 - 0.15 in
Cable Opening [diameter]	3.81 mm	3.81 mm
Connector Type	Phone Plug	Phone Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	Tin	Tin
Current Rating (Amps)	4 A	4 A
Features	Sealed, Strain Relief	Sealed, Strain Relief
Gender	Male	Male
Housing Material	Copper Alloy	Copper Alloy
Includes	1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector	1 Handle, 1 O-Ring, 1 Insulator Tube, 1 Connector
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	False	False
Mating Length/Depth	14.2 mm	14.2 mm
Mating Length/Depth	0.56 in	0.56 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

35HDSN Series

Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Part	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Mating Length/Depth	Mating Length/Depth	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shielding	Signal Lines	Mounting Type	Body Color	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Material	Features	Cable Opening [custom]	Cable Opening [custom]	Contact Material - Plating	Termination	Connector Type	Housing Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Switchcraft Inc. 35HDSN15	Male	3.56 mm	0.14 in	14.2 mm	0.56 in	85 °C	-20 C	Copper Alloy	Unshielded	Stereo	Free Hanging (In-Line)	Black, Silver	1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring	3	3	Copper Alloy	Sealed, Strain Relief	0.15 in, 0.175 in	3.81 mm, 4.45 mm	Tin	Solder Eyelet(s)	Phone Plug	Copper Alloy	0.141 "	0.125 "	3.5 mm	4 A
Switchcraft Inc. 35HDSN12	Male	3.56 mm	0.14 in	14.2 mm	0.56 in	85 °C	-20 C	Copper Alloy	Unshielded	Stereo	Free Hanging (In-Line)	Black, Silver	1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring	3	3	Copper Alloy	Sealed, Strain Relief			Tin	Solder Eyelet(s)	Phone Plug	Copper Alloy	0.141 "	0.125 "	3.5 mm	4 A	3.18 mm	0.125 in, 0.15 in	3.81 mm
Switchcraft Inc. 35HDSN17	Male	3.56 mm	0.14 in	14.2 mm	0.56 in	85 °C	-20 C	Copper Alloy	Unshielded	Stereo	Free Hanging (In-Line)	Black, Silver	1 Connector, 1 Handle, 1 Insulator Tube, 1 O-Ring	3	3	Copper Alloy	Sealed, Strain Relief			Tin	Solder Eyelet(s)	Phone Plug	Copper Alloy	0.141 "	0.125 "	3.5 mm	4 A				4.45 mm	0.21 in	5.33 mm	0.175 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.00
		10	$ 8.86
		25	$ 8.52
Sager	N/A	100	$ 9.81
		200	$ 9.56
		300	$ 9.43

Description

General part information

35HDSN Series

Phone Connectors 3.5mm Locking Blk Body Nickel Pin

Documents

Technical documentation and resources

Datasheet

Document
