6280-6PG-516

Active

Conxall/Switchcraft

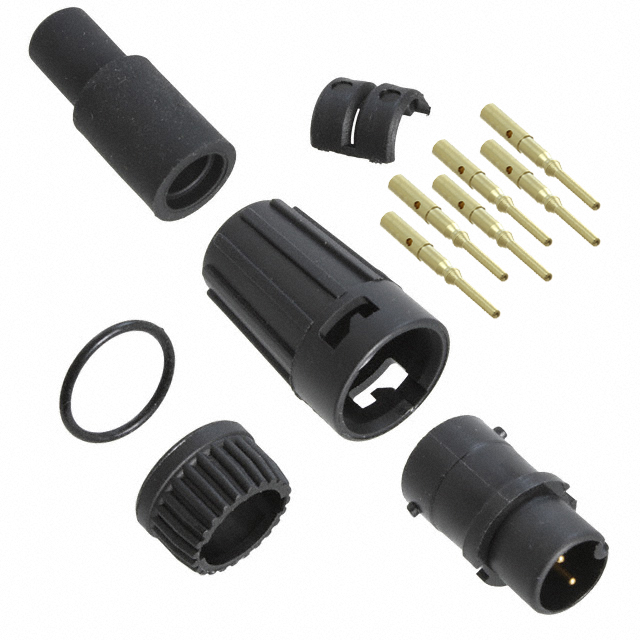

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-6PG-516

Active

Conxall/Switchcraft

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-6PG-516	6280-6PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.21 - 0.25 in
Cable Opening	-	0.19 - 0.22 in
Cable Opening	-	4.83 - 5.59 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening [Max] [custom]	0.18 in	0.18 in
Cable Opening [Max] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.16 in	0.16 in
Cable Opening [Min] [custom]	4.06 mm	4.06 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6280-6PG Series

CONN PLUG MALE 6POS GOLD CRIMP

Part	Ingress Protection	Number of Positions	Orientation	Shielding	Contact Finish - Mating	Connector Type	Voltage Rating	Primary Material	Backshell Material, Plating	Termination	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Color	Fastening Type	Contact Material	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Current Rating (Amps)	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6280-6PG-519	Weathertight	6	Keyed	Unshielded	Gold	Male Pins, Plug	600 V	Plastic	Nylon, Polyamide (PA)	Crimp	Automotive, Communication Systems, Instrumentation	-40 °C	115 °C	Black	Bayonet Lock	Brass	Backshell	0.21 in	0.19 in	4.83 mm	5.33 mm	Varies by Wire Gauge	Free Hanging (In-Line)
Conxall/Switchcraft 6280-6PG-516	Weathertight	6	Keyed	Unshielded	Gold	Male Pins, Plug	600 V	Plastic	Nylon, Polyamide (PA)	Crimp	Automotive, Communication Systems, Instrumentation	-40 °C	115 °C	Black	Bayonet Lock	Brass	Backshell					Varies by Wire Gauge	Free Hanging (In-Line)	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6280-6PG-315	Weathertight	6	Keyed	Unshielded	Gold	Male Pins, Plug	600 V	Plastic	Nylon, Polyamide (PA)	Crimp	Automotive, Communication Systems, Instrumentation	-40 °C	115 °C	Black	Bayonet Lock	Brass	Backshell					Varies by Wire Gauge	Free Hanging (In-Line)					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 6280-6PG-522	Weathertight	6	Keyed	Unshielded	Gold	Male Pins, Plug	600 V	Plastic	Nylon, Polyamide (PA)	Crimp	Automotive, Communication Systems, Instrumentation	-40 °C	115 °C	Black	Bayonet Lock	Brass	Backshell	0.25 in	0.22 in	5.59 mm	6.35 mm	Varies by Wire Gauge	Free Hanging (In-Line)
Conxall/Switchcraft 6280-6PG-513	Weathertight	6	Keyed	Unshielded	Gold	Male Pins, Plug	600 V	Plastic	Nylon, Polyamide (PA)	Crimp	Automotive, Communication Systems, Instrumentation	-40 °C	115 °C	Black	Bayonet Lock	Brass	Backshell					Varies by Wire Gauge	Free Hanging (In-Line)					0.13 in, 0.15 in	3.3 mm, 3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.62
		10	$ 9.55
		25	$ 9.00
		50	$ 8.77

Description

General part information

6280-6PG Series

6 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources
