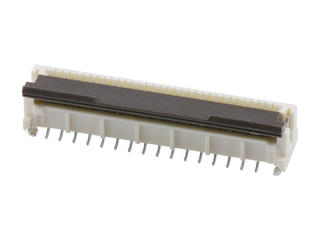

Specification	5019513200

Actuator Color	Brown
Actuator Material	Glass Filled, Nylon 9T, Polyamide (PA9T)
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, 1 Sided, Vertical
Contact Finish	Tin Bismuth
Contact Material	Copper Alloy
Current Rating	400 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.159 in
Housing Color	White
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	32
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

501951 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Actuator Material	Mounting Type	Flat Flex Type	Pitch	Features	Contact Material	Number of Positions	Locking Feature	Contact Finish	Cable End Type	Connector/Contact Type	FFC, FCB Thickness	Voltage Rating	Height Above Board	Termination	Material Flammability Rating	Current Rating (Per Contact)	Mating Cycles	Housing Color	Actuator Color	Contact Finish Thickness	Current Rating
Molex 5019517030	-40 °C	85 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FPC	0.02 in	Solder Retention	Phosphor Bronze	70	Flip Lock	Gold	Straight	Contacts Top	0.3 mm	50 V	0.171 in	Solder	UL94 V-0	0.4 A	20 cycles	White	Black	3.94 µin
Molex 5019511550	-40 °C	125 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Right Angle Surface Mount	FFC FPC	0.02 in	Solder Retention	Copper Alloy	15	Flip Lock	Gold	Straight	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0
Molex 5019514850	-40 °C	125 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FFC FPC	0.02 in	Solder Retention	Copper Alloy	48	Flip Lock	Gold	Straight Tapered	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0		20 cycles	White	Black	3.94 µin	0.5 A
Molex 5019512030	-40 °C	85 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FFC FPC	0.02 in	Solder Retention	Phosphor Bronze	20	Flip Lock	Gold	Straight	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0
Molex 5019511150	-40 °C	125 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Right Angle Surface Mount	FFC FPC	0.02 in	Solder Retention	Copper Alloy	11	Flip Lock	Gold	Straight	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0		20 cycles	White	Black	3.94 µin	0.5 A
Molex 5019515550	-40 °C	125 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Right Angle Surface Mount	FFC FPC	0.02 in	Solder Retention	Copper Alloy	55	Flip Lock	Gold	Straight	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0		20 cycles	White	Black	3.94 µin	0.5 A
Molex 5019511030	-40 °C	85 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FFC FPC	0.02 in	Solder Retention	Phosphor Bronze	10	Flip Lock	Gold	Straight	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0
Molex 5019512850	-40 °C	125 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FFC FPC	0.02 in	Solder Retention	Copper Alloy	28	Flip Lock	Gold	Straight Tapered	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0		20 cycles	White	Black	3.94 µin	0.5 A
Molex 5019515150	-40 °C	125 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FFC FPC	0.02 in	Solder Retention	Copper Alloy	51	Flip Lock	Gold	Straight Tapered	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0		20 cycles	White	Black	3.94 µin	0.5 A
Molex 5019511930	-40 °C	85 °C	Glass Filled LCP Liquid Crystal Polymer	Glass Filled Nylon Polyamide (PA)	Surface Mount	FFC FPC	0.02 in	Solder Retention	Phosphor Bronze	19	Flip Lock	Gold	Straight Tapered	1 Sided Contacts Vertical	0.3 mm	50 V	0.159 in	Solder	UL94 V-0
