SQAC0806-5N5G-RC
ActiveAllied Components International

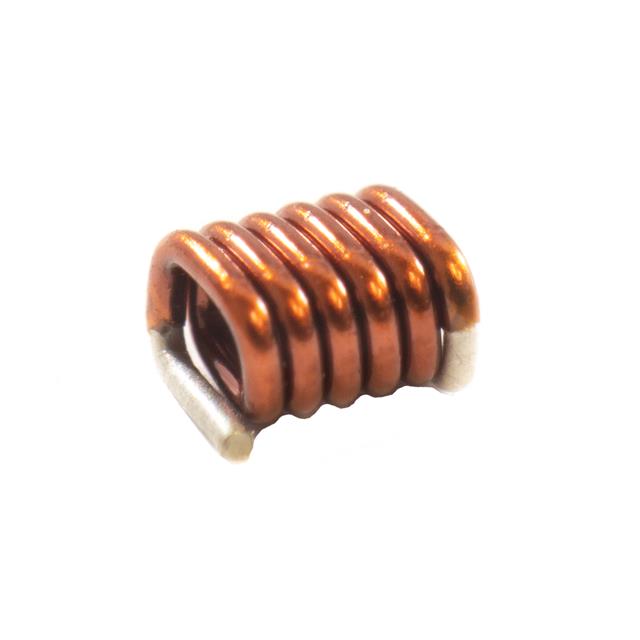

5.5NH +/-2% SQUARE WOUND COIL
SQAC0806-5N5G-RC
ActiveAllied Components International
5.5NH +/-2% SQUARE WOUND COIL
Description
General part information
SQAC0806-5N5G-RC
5.5 nH Unshielded Wirewound Inductor 2.9 A 3.4mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SQAC0806-5N5G-RC |
|---|---|
| Current Rating | 2.9 A |
| DC Resistance (DCR) (Max) | 3.4 mOhm |
| Frequency - Self Resonant | 4.9 GHz |
| Height - Seated (Max) | 0.059 in |
| Inductance | 5.5 nH |
| Inductance Frequency - Test | 400 MHz |
| Material - Core | Air |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.053 in |
| Size / Dimension Width | 0.072 in |
| Tolerance | 2 % |
| Type | Wirewound |
