T60404N4647X761
ActiveVACUUMSCHMELZE

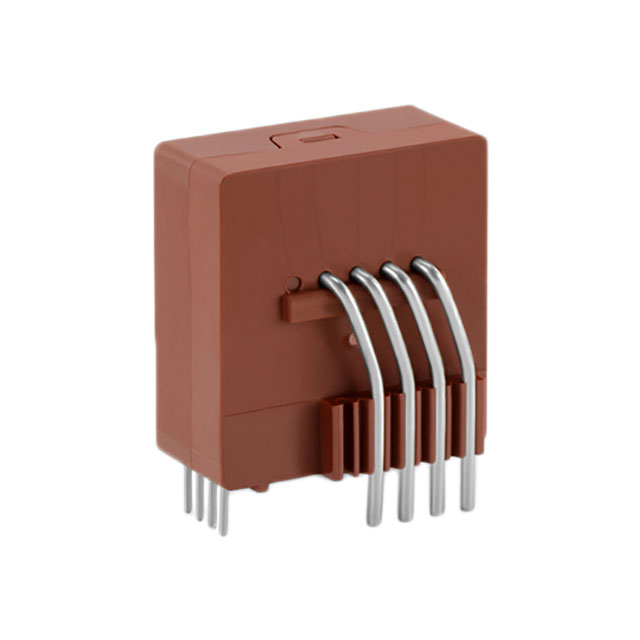

CURRENT SENSOR, 25A, 4 PRI PINS,
T60404N4647X761
ActiveVACUUMSCHMELZE
CURRENT SENSOR, 25A, 4 PRI PINS,
Description
General part information
T60404N4647X761
Current Sensor 25A 1 Channel Closed Loop Unidirectional 12-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | T60404N4647X761 |
|---|---|
| Accuracy | 0.7 % |
| Current - Sensing | 25 A |
| Current - Supply (Max) | 15 mA |
| For Measuring | AC, DC |
| Linearity Tolerance | 0.1 % |
| Maximum Frequency | 200 kHz |
| Minimum Frequency | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | 12-DIP Module |
| Polarization | Unidirectional |
| Response Time | 300 ns |
| Sensor Type | Closed Loop |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
