PT06J-12-3S
ActiveAmphenol Industrial Operations

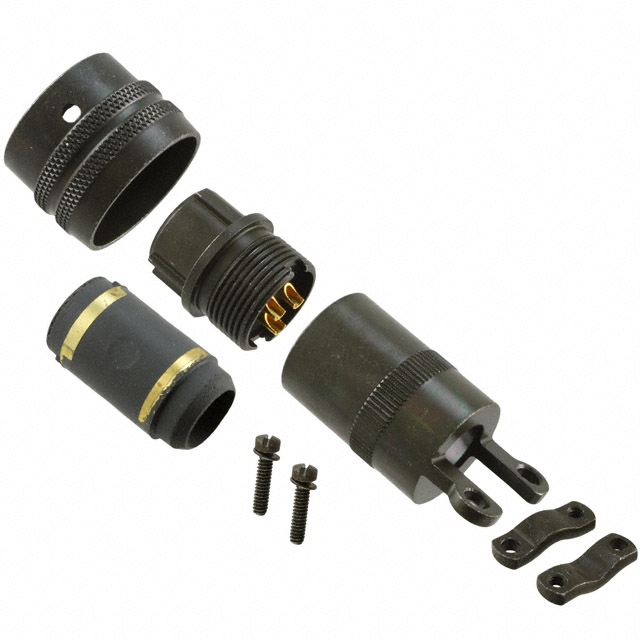

CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT06J-12-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT06J-12-3S | PT06J Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Communication Systems, Industrial, Mass Transit, Aerospace, Instrumentation, Military |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Electroless Nickel, Aluminum, Olive Drab Cadmium |
| Color | Olive Drab | Silver, Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Strain Relief | Strain Relief, Cable Clamp, Coupling Nut, Backshell |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 6 - 15 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Electroless Nickel, Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 12-3 | 14-5, 12-3, 10-5 |
| Shell Size - Insert | - | 10 - 14 |
| Shell Size - Insert | - | 15 - 98 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 1000 VAC | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.06 | |
| 10 | $ 78.25 | |||
| 25 | $ 73.36 | |||
| 50 | $ 69.86 | |||
| 100 | $ 66.53 | |||
PT06J Series
PT 5C 5#16 SKT PLUG
| Part | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Primary Material | Qualification | Shell Size - Insert | Color | Connector Type | Insert Material | Shell Finish | Fastening Type | Applications | Orientation | Contact Finish - Mating | Shell Material | Backshell Material, Plating | Contact Material | Features | Current Rating (Amps) | Voltage Rating | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT06J14-5S-023 | Unshielded | -55 °C | 125 °C | Free Hanging (In-Line) | Metal | MIL-DTL-26482 Series I | 14-5 | Silver | Female Sockets, Plug | Neoprene | Electroless Nickel | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | N | Gold | Aluminum | Aluminum, Electroless Nickel | Copper Alloy | ||||||
Amphenol Industrial Operations PT06J-12-3S | Unshielded | -55 °C | 125 °C | Free Hanging (In-Line) | Metal | MIL-DTL-26482 Series I | 12-3 | Olive Drab | Female Sockets, Plug | Neoprene | Olive Drab Chromate over Cadmium | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | Gold | Aluminum | Aluminum, Olive Drab Cadmium | Copper Alloy | Strain Relief | 13 A | 1000 VAC | |||
Amphenol Industrial Operations PT06J-10-5P | Unshielded | -55 °C | 125 °C | Free Hanging (In-Line) | Metal | MIL-DTL-26482 Series I | 10-5 | Olive Drab | Male Pins, Plug | Neoprene | Olive Drab Chromate over Cadmium | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | Gold | Aluminum | Aluminum, Olive Drab Cadmium | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | |||||
Amphenol Industrial Operations PT06J14-15S | Unshielded | -55 °C | 125 °C | Free Hanging (In-Line) | Metal | MIL-DTL-26482 Series I | Olive Drab | Female Sockets, Plug | Neoprene | Olive Drab Chromate over Cadmium | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | N | Gold | Aluminum | Aluminum, Olive Drab Cadmium | Copper Alloy | 14 | 15 | 15 | ||||
Amphenol Industrial Operations PT06J-10-98P | Unshielded | -55 °C | 125 °C | Free Hanging (In-Line) | Metal | MIL-DTL-26482 Series I | Olive Drab | Male Pins, Plug | Neoprene | Olive Drab Chromate over Cadmium | Bayonet Lock | Aerospace, Industrial, Instrumentation, Mass Transit, Military | N | Gold | Aluminum | Aluminum, Olive Drab Cadmium | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | 10 | 98 | 6 | |||
Amphenol Industrial Operations PT06J12-10PX | Unshielded | -55 °C | 125 °C | Free Hanging (In-Line) | Metal | MIL-DTL-26482 Series I | Olive Drab | Male Pins, Plug | Neoprene | Olive Drab Chromate over Cadmium | Bayonet Lock | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | X | Gold | Aluminum | Aluminum, Olive Drab Cadmium | Copper Alloy | 10 |
Description
General part information
PT06J Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
