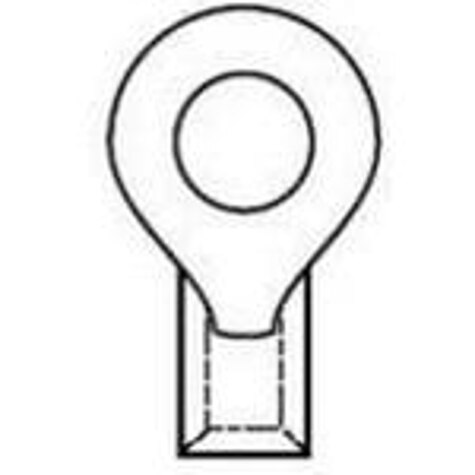

Specification	0191930190

Contact Finish	Electro-Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall	1.938 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.5 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges	1.14 in
Wire Gauge	8 AWG

019193 Series

...

Part	Termination	Contact Finish	Width - Outer Edges	Terminal Type	Mounting Type	Features	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Material	Thickness	Insulation	Length - Overall	Stud/Tab Size	Stud/Tab Size (Type)	Stud/Tab Size	Wire Gauge
Molex 0191930023	Crimp	Electro-Tin	0.467 in	Circular	Free Hanging (In-Line)	Brazed Seam	18 AWG	22 AWG	Copper	0.028 in	Non-Insulated	0.835 in	0.3125 in	Stud	16 Stud 5 Stud
Molex 0191930122	Crimp	Electro-Tin	0.54 in	Circular	Free Hanging (In-Line)	Brazed Seam	10 AWG	12 AWG	Copper	0.04 in	Non-Insulated	0.952 in	0.3125 in	Stud	16 Stud 5 Stud
Molex 0191930959	Crimp	Electro-Tin	0.379 in	Circular	Free Hanging (In-Line)	Brazed Seam			Copper		Non-Insulated	0.93 in	8 Stud			8 AWG
Molex 0191930097	Crimp	Electro-Tin	0.76 in	Circular	Free Hanging (In-Line)	Brazed Seam	10 AWG	12 AWG	Copper	0.04 in	Non-Insulated	1.28 in	0.375 in		3 Stud 8 Stud
Molex 0191930845	Crimp	Electro-Tin	0.54 in	Circular	Free Hanging (In-Line)	Brazed Seam	10 AWG	12 AWG	Copper	0.04 in	Non-Insulated	0.952 in	0.25 Stud
Molex 0191930174	Crimp	Electro-Tin	0.598 in	Circular	Free Hanging (In-Line)	Brazed Seam			Copper		Non-Insulated	1.102 in	0.3125 in	Stud	16 Stud 5 Stud	8 AWG
Molex 0191930879	Crimp	Electro-Tin	0.652 in	Circular	Free Hanging (In-Line)	Brazed Seam			Copper	0.075 in	Non-Insulated	1.385 in	0.25 Stud			4 AWG
Molex 0191930297	Crimp	Tin	0.879 in	Circular	Free Hanging (In-Line)	Brazed Seam			Copper		Non-Insulated	1.7 in	0.25 Stud			2 AWG
Molex 0191930195	Crimp	Electro-Tin	1.14 in	Circular	Free Hanging (In-Line)	Brazed Seam			Copper		Non-Insulated	1.938 in	0.625 in		5 Stud 8 Stud	8 AWG
Molex 0191930881	Crimp	Electro-Tin	0.652 in	Circular	Free Hanging (In-Line)	Brazed Seam			Copper	0.075 in	Non-Insulated	1.385 in	0.3125 in	Stud	16 Stud 5 Stud	4 AWG
