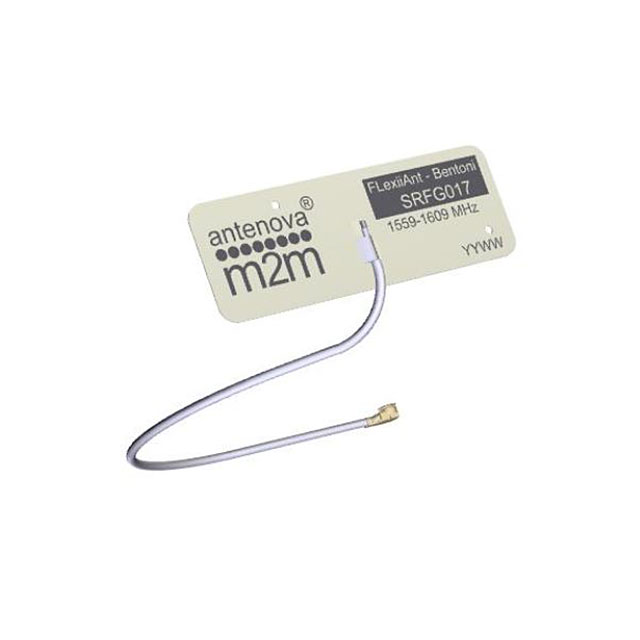

SRFG017-100

Active

Antenova

RF ANT 1.561/1.575GHZ FLAT 100MM

Search across all available documentation for this part.

Active

Antenova

RF ANT 1.561/1.575GHZ FLAT 100MM

Technical Specifications

Parameters and characteristics commom to parts in this series

ANTENNA GNSS -1.2DBI GAIN 1609MHZ BAG

Part	Return Loss	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Applications	Termination	Mounting Type	Antenna Type	Features	Features	Number of Bands	Gain	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Height (Max)	Height (Max) [Max]	Frequency (Center/Band)
Antenova SRFG017-50	-14 dB	Navigation	1.609 GHz	1.559 GHz	Beidou, Galileo, GLONASS, GPS	IPEX MHF1, U.FL (UMCC)	Adhesive	Flat Patch	50 mm	Cable	1	4 dBi	2 GHz	1 GHz	UHF	0.15 mm	0.006 in	1.561 GHz, 1.575 GHz, 1.602 GHz
Antenova SRFG017-100	-14 dB	Navigation	1.609 GHz	1.559 GHz	Beidou, Galileo, GLONASS, GPS	IPEX MHF1, U.FL (UMCC)	Adhesive	Flat Patch	100 mm	Cable	1	4 dBi	2 GHz	1 GHz	UHF	0.15 mm	0.006 in	1.561 GHz, 1.575 GHz, 1.602 GHz
Antenova SRFG017-150	-14 dB	Navigation	1.609 GHz	1.559 GHz	Beidou, Galileo, GLONASS, GPS	IPEX MHF1, U.FL (UMCC)	Adhesive	Flat Patch		Cable - 150mm	1	4 dBi	2 GHz	1 GHz	UHF	0.15 mm	0.006 in	1.561 GHz, 1.575 GHz, 1.602 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GPS Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
