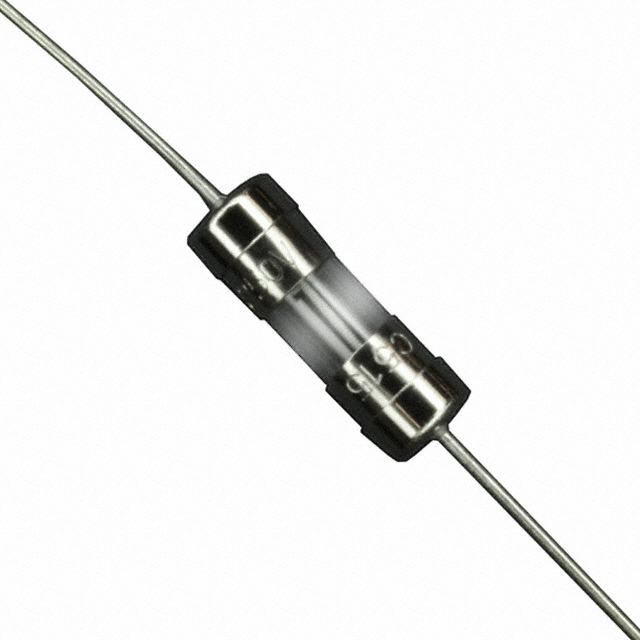

TR2/C515S-2-R
LTBEaton - Electronics Division
FUSE GLASS 2A 250VAC 2AG
TR2/C515S-2-R
LTBEaton - Electronics Division
FUSE GLASS 2A 250VAC 2AG
Description
General part information
TR2/C515S-2-R
2 A 250 V AC DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR2/C515S-2-R |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 100 A |
| Current Rating | 2 A |
| DC Cold Resistance | 0.059 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 60.256 |
| Mounting Type | Through Hole |
| Package / Case | 5mm x 15mm (Axial), 2AG |
| Package Features | Axial |
| Package Length | 5 mm |
| Package Name | 2AG |
| Package Width | 15 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.217 in |
| Size / Dimension Length | 0.598 in |
| Voltage Rating - AC | 250 V |
