WCM 7060FASF-102-LM
ActiveTAI-TECH Advanced Electronics Co., Ltd.
2 LINE COMMON MODE CHOKE SURFACE
WCM 7060FASF-102-LM
ActiveTAI-TECH Advanced Electronics Co., Ltd.
2 LINE COMMON MODE CHOKE SURFACE
Description
General part information

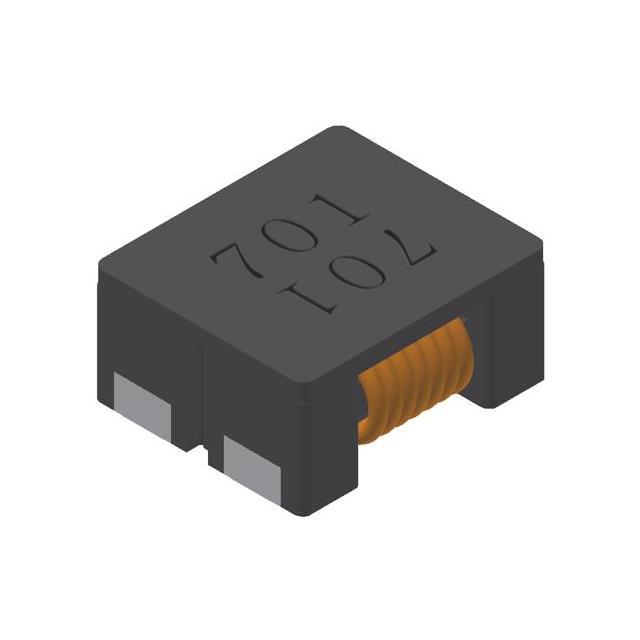

WCM 7060FASF-102-LM
2 Line Common Mode Choke Surface Mount 1.02 kOhms @ 100 MHz 3A DCR 17mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | WCM 7060FASF-102-LM |
|---|---|
| Current Rating (Max) | 3 A |
| DC Resistance (DCR) (Max) | 17 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.15 in |
| Impedance | 1.02 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.236 in |
| Voltage Rating - DC | 80 VDC |
