MMBT2222A

Active

MDD

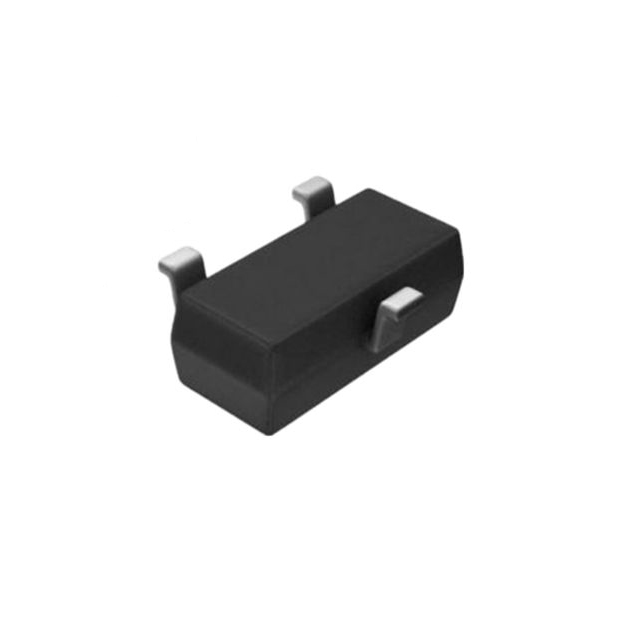

TRANS NPN 40V 0.6A SOT23

Search across all available documentation for this part.

Active

MDD

TRANS NPN 40V 0.6A SOT23

Technical Specifications

Parameters and characteristics for this part

Specification	MMBT2222A

Current - Collector (Ic) (Max) [Max]	600 mA
Current - Collector Cutoff (Max) [Max]	0.01 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	300 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Supplier Device Package	SOT-23
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	40 V

TRANS NPN 40V 0.6A SOT23

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Mounting Type	Transistor Type	Supplier Device Package
MDD MMBT2222A	100	40 V	SC-59, SOT-23-3, TO-236-3	-55 °C	150 °C	1 V	0.01 µA	300 MHz	600 mA	Surface Mount	NPN	SOT-23

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 40 V 600 mA 300MHz 300 mW Surface Mount SOT-23
