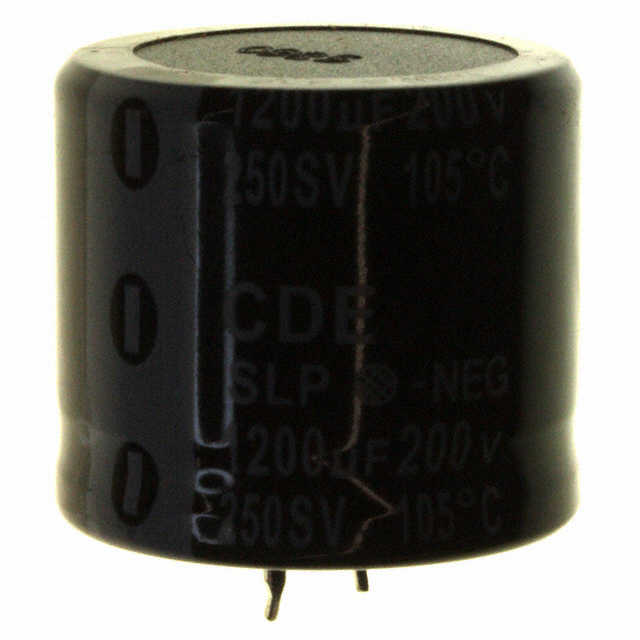

SLP122M200H3P3
ActiveCornell Dubilier Knowles
CAP ALUM 1200UF 20% 200V SNAP TH
SLP122M200H3P3
ActiveCornell Dubilier Knowles
CAP ALUM 1200UF 20% 200V SNAP TH
Description
General part information
SLP122M200H3P3
1200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 166mOhm 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SLP122M200H3P3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1200 µF |
| ESR (Equivalent Series Resistance) | 166 mOhm |
| Height - Seated (Max) | 1.181 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
