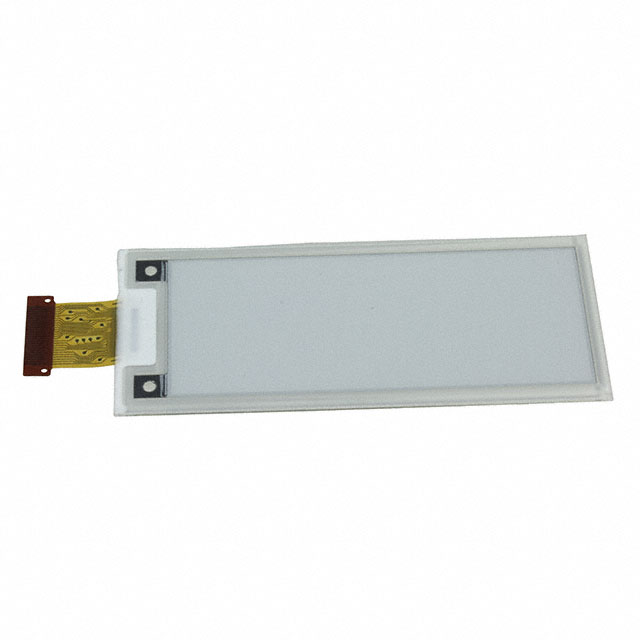

E2287CS051

Obsolete

Pervasive Displays

2.87" EPD A-MB WITH ITC

Search across all available documentation for this part.

Obsolete

Pervasive Displays

2.87" EPD A-MB WITH ITC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E2287CS051	E2287 Series

Background Color	White	White
Backlight	Without Backlight	Without Backlight
Diagonal Screen Size	72.89 mm	72.89 - 73.66 mm
Diagonal Screen Size	2.87 in	2.87 - 2.9 in
Display Mode	Reflective	Reflective
Display Type	TFT - Electronic Paper Display (EPD)	TFT - Color, TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.23 mm	0.23 mm
Dot Pitch [y]	0.23 mm	0.23 mm
Dot Pixels [x]	296	296
Dot Pixels [y]	128	128
Graphics Color	Black	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	66.9 mm	66.9 mm
Viewing Area [y]	29.06 mm	29.06 mm

DISPLAY 2.87" SPECTRA R1.2

Part	Graphics Color	Dot Pixels [y]	Dot Pixels [x]	Dot Pitch [x]	Dot Pitch [y]	Display Type	Interface	Viewing Area [y]	Viewing Area [x]	Diagonal Screen Size	Diagonal Screen Size	Backlight	Background Color	Display Mode
Pervasive Displays E2287FS091	Black, Red, White	128	296	0.23 mm	0.23 mm	TFT - Color	SPI	29.06 mm	66.9 mm	73.66 mm	2.9 in
Pervasive Displays E2287ES051	Black, Red	128	296	0.23 mm	0.23 mm	TFT - Electronic Paper Display (EPD)	SPI	29.06 mm	66.9 mm	72.89 mm	2.87 in	Without Backlight	White	Reflective
Pervasive Displays E2287CS051	Black	128	296	0.23 mm	0.23 mm	TFT - Electronic Paper Display (EPD)	SPI	29.06 mm	66.9 mm	72.89 mm	2.87 in	Without Backlight	White	Reflective
Pervasive Displays E2287CS091	Black, White	128	296	0.23 mm	0.23 mm	TFT - Color	SPI	29.06 mm	66.9 mm	73.66 mm	2.9 in
Pervasive Displays E2287PS091	Black, White	128	296	0.23 mm	0.23 mm	TFT - Color	SPI			72.89 mm	2.87 in	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 2.87" (72.89mm) 296 x 128
