10-482-B36

Active

Coax Connectors Ltd

BNC RIGHT ANGLE BULKHEAD JACK PC

Search across all available documentation for this part.

Active

Coax Connectors Ltd

BNC RIGHT ANGLE BULKHEAD JACK PC

Technical Specifications

Parameters and characteristics for this part

Specification	10-482-B36

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, Through Hole, Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

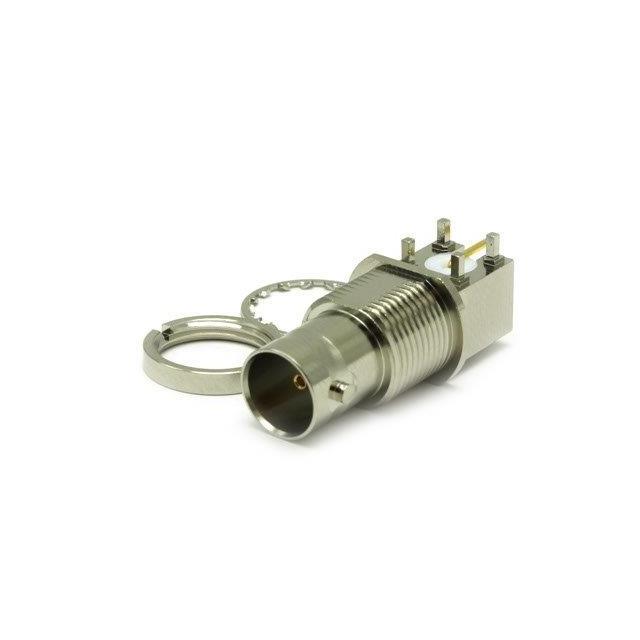

BNC RIGHT ANGLE BULKHEAD JACK PC

Part	Fastening Type	Housing Color	Center Contact Material	Shield Termination	Dielectric Material	Contact Termination	Impedance	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Center Contact Plating	Mounting Feature	Ingress Protection	Mating Cycles	Connector Type	Frequency - Max [Max]	Number of Ports	Mounting Type	Body Material
Coax Connectors Ltd 10-482-B36	Bayonet Lock	Silver	Phosphor Bronze	Solder	Polytetrafluoroethylene (PTFE)	Solder	75 Ohms	Nickel	155 °C	-55 °C	BNC	Gold	Bulkhead - Front Side Nut	IP64 - Dust Tight, Water Resistant	500	Female Socket, Jack	4.5 GHz	1	Panel Mount, Surface Mount, Through Hole	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount; Surface Mount, Through Hole Solder
