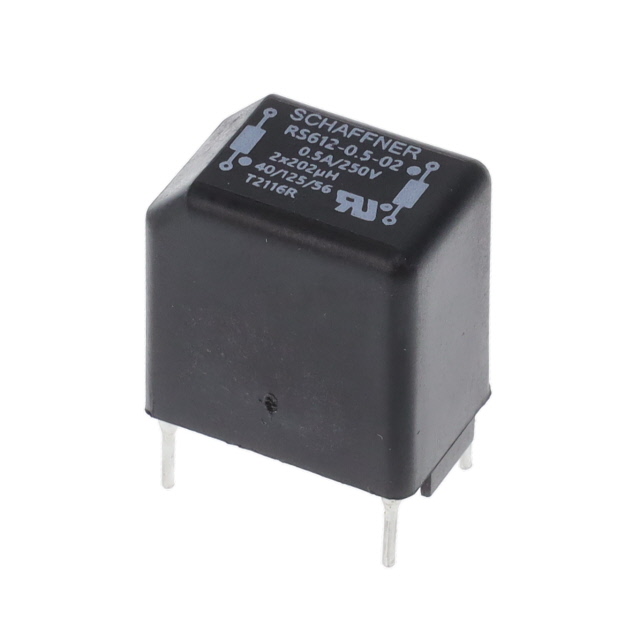

RS612-0.5-02
ObsoleteTE Connectivity Raychem Cable Protection
CMC 200UH 500MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RS612-0.5-02
ObsoleteTE Connectivity Raychem Cable Protection
CMC 200UH 500MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RS612-0.5-02 |
|---|---|
| Approval Agency | VDE, UR |
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 650 mOhm |
| Height (Max) [Max] | 0.787 in |
| Height (Max) [Max] | 20 mm |
| Inductance @ Frequency | 200 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.65 | |
Description
General part information
RS612-0.5-02
200 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA (Typ) DCR 650mOhm (Typ)
