PE9481
ActivePasternack

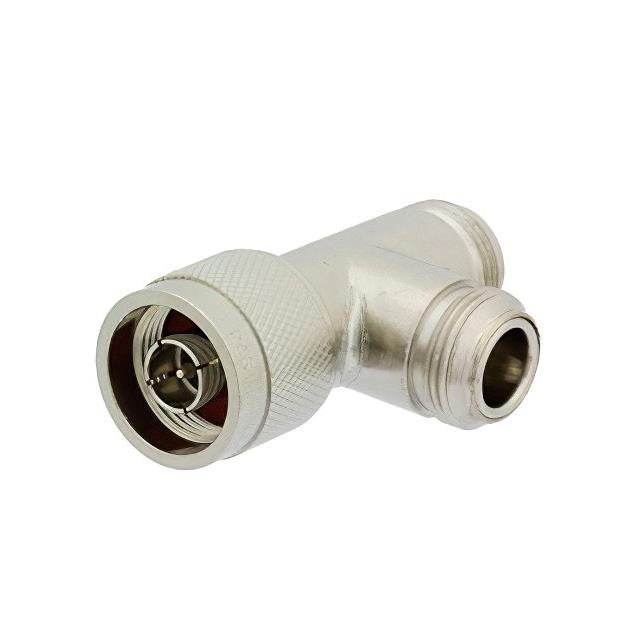

N TEE ADAPTER MALE-FEMALE-FEMALE
PE9481
ActivePasternack
N TEE ADAPTER MALE-FEMALE-FEMALE
Description
General part information
PE9481
Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket (2) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9481 |
|---|---|
| Adapter Series | N to N, Dual |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | T-Shape |
