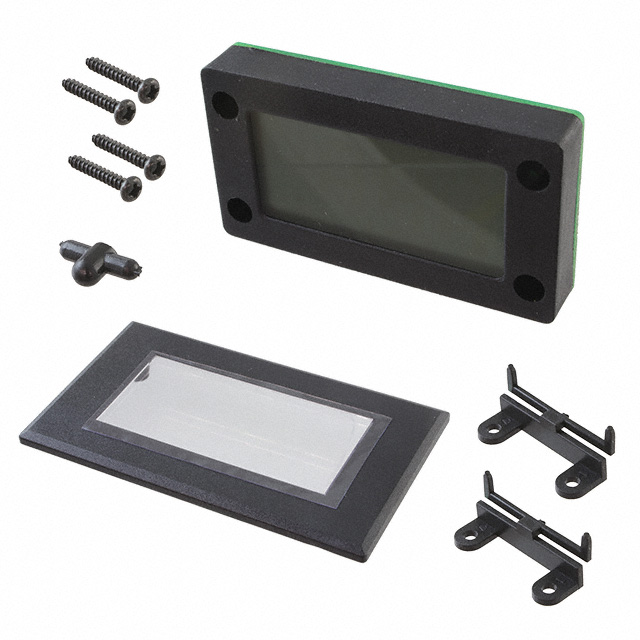

DPM 970

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.49

Description

General part information

- Series

Voltmeter LCD - Black Characters, Green Backlight Display Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DPM 970	- Series

Display Characters - Height	-	0.25 - 0.5 in
Display Characters - Height	-	6.3 - 12.7 mm
Display Characters - Height	-	9.4 - 15.2 mm
Display Characters - Height	-	0.37 - 0.6 in
Display Characters - Height [y]	19 mm	8 - 19 mm
Display Characters - Height [y]	0.748 in	0.315 - 0.748 in
Display Type	-	LCD - Black Characters, LCD - Red Characters, Backlight, LCD - Black Bar Graph, LED - Red Characters
Measuring Range [Max]	500 VAC	0.2 - 500 VDC
Measuring Range [Min]	0 VAC	-200 - 50 mV
Measuring Type	Voltage	Voltage, Current, Thermister
Mounting Type	-	Panel Mount - Surface, Panel Mount - Bezel, Window
Number of Characters Per Row	3.5	3.5 - 4.5
Number of Characters Per Row	-	9-Segment
Operating Temperature	-	-10 °C
Operating Temperature	-	50 °C
Output Type	-	Reference, Analog
Panel Cutout Dimensions	-	5.5 mm
Panel Cutout Dimensions [x]	72 mm	31 - 72 mm
Panel Cutout Dimensions [y]	40 mm	15 - 40 mm
Termination Style	Screw Terminal	PC Pin, Wire Leads, Solder Pad, Screw Terminal
Type	Voltmeter	Voltmeter, Ammeter, Temperature Meter
Voltage - Supply [Max]	14 V	4.8 - 50 V
Voltage - Supply [Min]	7.5 V	3 - 7.5 V

- Series

VOLTMETER 0-200MVDC LCD PNL MT

Part	Number of Characters Per Row	Termination Style	Type	Measuring Type	Output Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Range [Min]	Measuring Range [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Display Characters - Height [z]	Display Characters - Height [z]	Display Characters - Height	Display Characters - Height	Number of Characters Per Row	Mounting Type	Panel Cutout Dimensions [diameter]	Display Characters - Height [y]	Display Characters - Height [y]
Lascar Electronics V 125	3.5	PC Pin	Voltmeter	Voltage	Reference	21.4 mm	41.5 mm	-200 mV	0.2 VDC	7 V	12 V	LCD - Black Characters	0.5 in	12.7 mm
Lascar Electronics SP 100	3.5	PC Pin	Voltmeter	Voltage	Reference	21.3 mm	34 mm	-200 mV	0.2 VDC	4.75 V	5.25 V	LCD - Red Characters, Backlight			9.4 mm	0.37 in
Lascar Electronics SP 400	3.5	PC Pin	Voltmeter	Voltage	Reference	21.3 mm	34 mm	-200 mV	0.2 VDC	3 V	7.5 V		0.384 in	9.75 mm
Lascar Electronics DPM 500	3.5	PC Pin	Voltmeter	Voltage	Reference	27 mm	57 mm	-200 mV	0.2 VDC	7.5 V	14 V	LCD - Black Characters	0.5 in	12.7 mm
Lascar Electronics V 1	3.5	PC Pin	Voltmeter	Voltage	Reference	15 mm	31 mm	-200 mV	0.2 VDC	7 V	12 V	LCD - Black Characters	0.25 in	6.3 mm
Lascar Electronics EMA 1710		Wire Leads	Voltmeter	Voltage	Analog			0 V	1 VDC	5 V	12 V	LCD - Black Bar Graph					9-Segment	Panel Mount - Surface	5.5 mm
Lascar Electronics OEM 1B	3.5	PC Pin	Voltmeter	Voltage				-200 mV	0.2 VDC	7.5 V	14 V	LCD - Black Characters								0.315 in	8 mm
Lascar Electronics DPM 950	3.5	PC Pin	Voltmeter	Voltage	Reference	40 mm	72 mm	-200 mV	0.2 VDC	7.5 V	14 V									0.748 in	19 mm
Lascar Electronics V 600	3.5	Solder Pad	Voltmeter	Voltage	Reference	32 mm	62 mm	-200 mV	0.2 VDC	7 V	12 V	LCD - Black Characters			15.2 mm	0.6 in
Lascar Electronics DPM 340	3.5	PC Pin	Voltmeter	Voltage		18 mm	38 mm	-200 mV	0.2 VDC	4.75 V	5.25 V	LED - Red Characters								0.315 in	8 mm
